If the Pro table is a light-duty option, the Standard Duty is the table for everyone else. Think of it as the Honda Civic of fixture tables — reliable, capable, and built to handle virtually any job a professional fabricator will throw at it on a daily basis. It is the most popular choice across the Fireball lineup. The Standard Duty features one-piece cast iron construction with heavy ribbing underneath, delivering exceptional stiffness and rigidity. Cast iron is naturally spatter-resistant, meaning weld spatter is far less likely to stick compared to regular plate steel. You can fully weld out directly on the Standard Duty fireballtool.com | Fireball Tool — Engineered for the Serious Fabricator | Page 2surface — it’s built for it — and torch heat can be applied directly to the cast iron without causing damage.
More Stuff

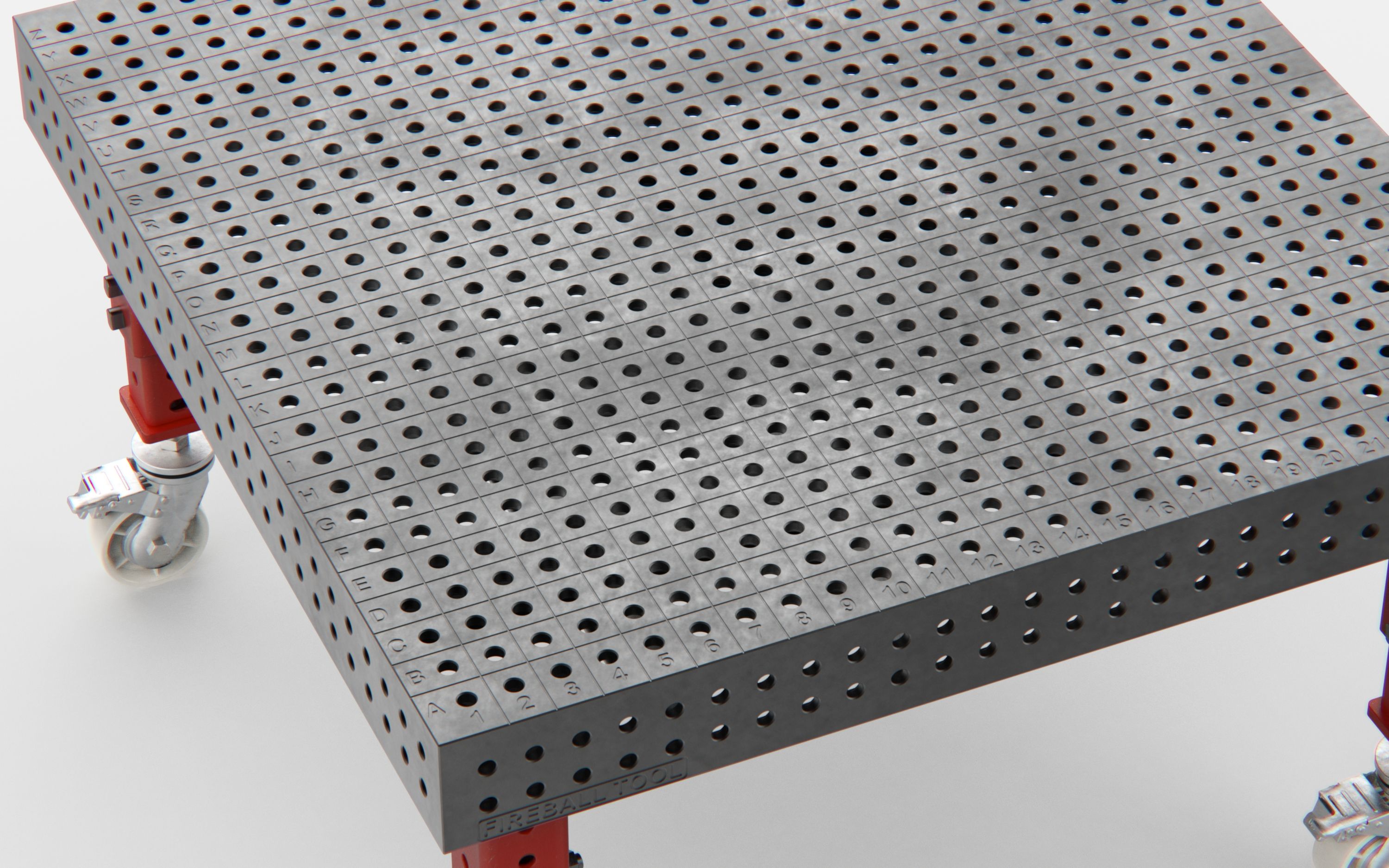

Standard Duty (54" x 54" x 6") (TCF)
- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 6" ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 6" tall with 1 row of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 1/2" thick table that shares all the same fixtures as the 1" thick table.
- Flatness (+/- .005) full length, corner to corner
BEST SUITED FOR:
• Professional fabricators and small shop owners
• Everyday production welding and fabrication
• Users who want a serious, no-compromise table at an accessible price point
• Second-floor shops where floor load capacity is a concern — the Standard Duty is significantly lighter than the Heavy Duty
Where the Standard Duty reaches its limits:
If you regularly build very tall weldments that generate long lever-arm forces, or if you frequently straighten frames and large structural assemblies under extreme twisting loads, the Heavy Duty’s one-inch top will serve you better.
Added Leg Pads
Alpha Numeric 2" x 2" Grid

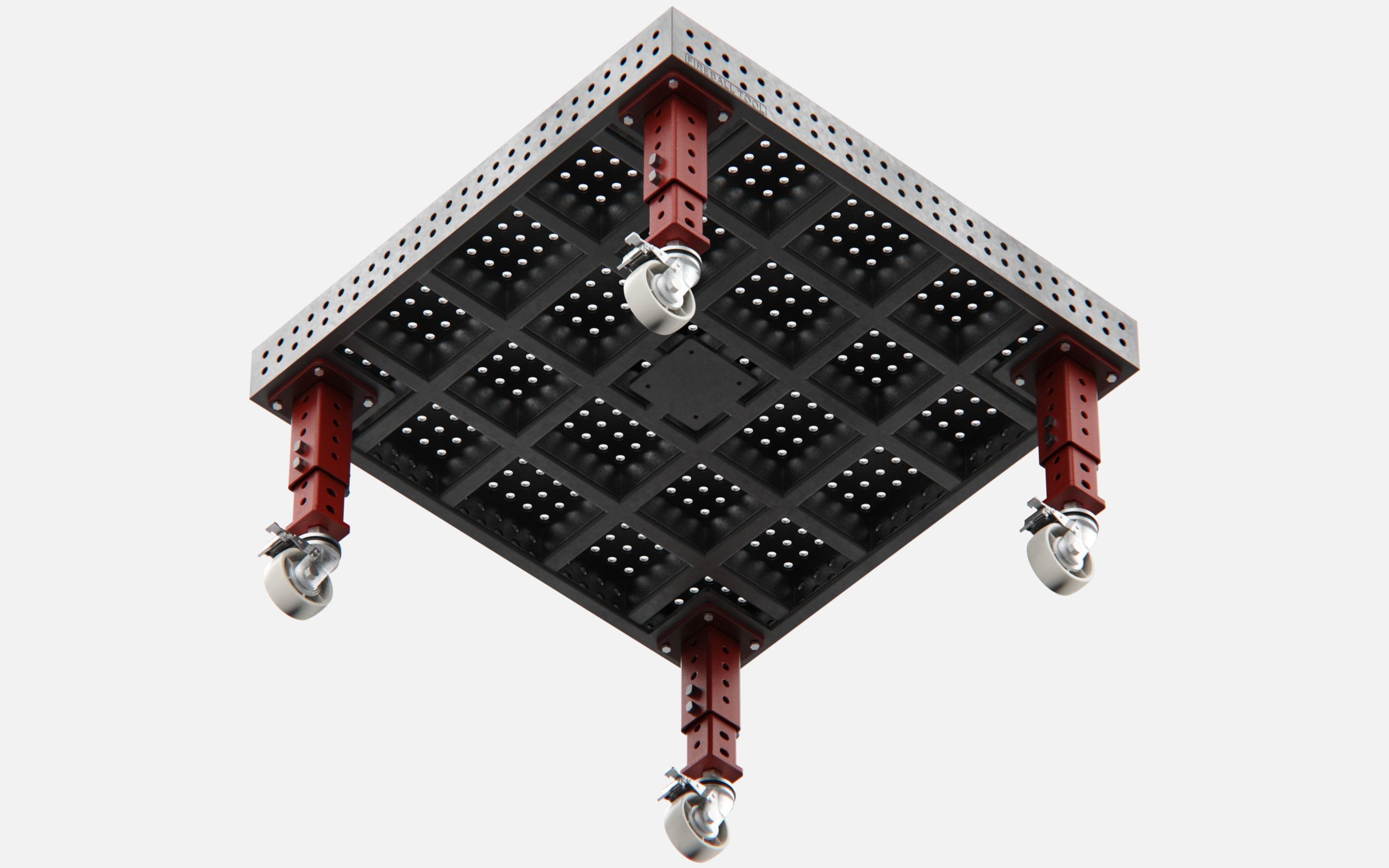

1/2" Thick / I-Beam Style Ribbing

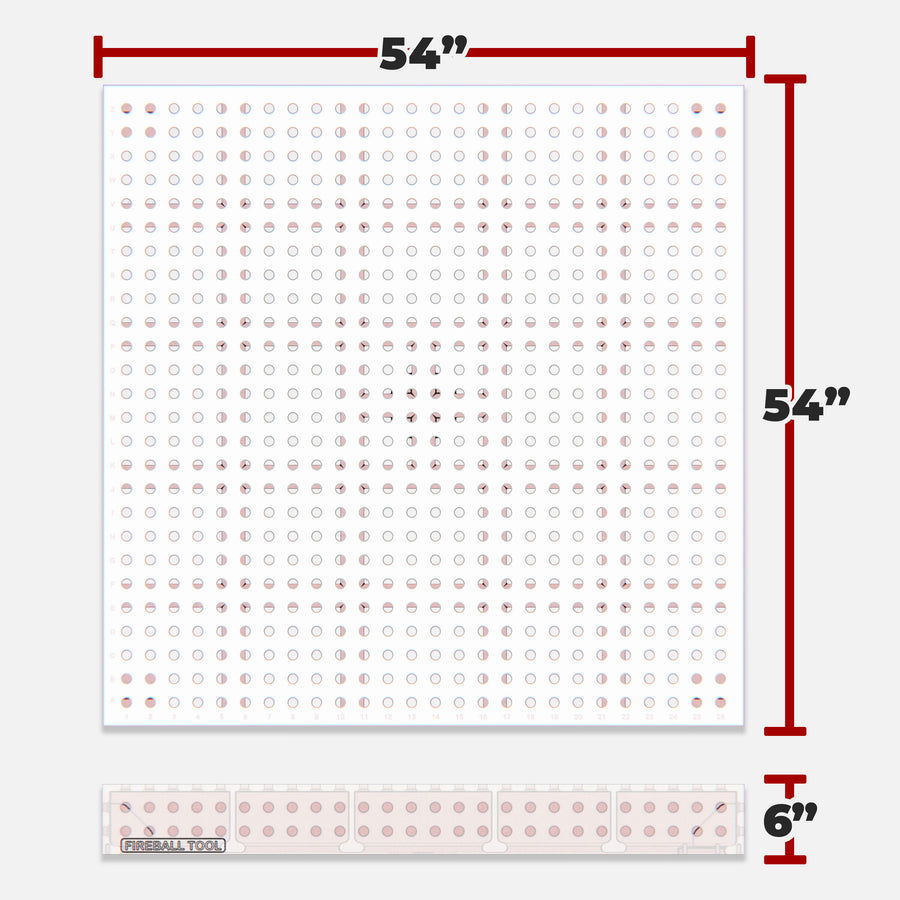

Tabletop Dimensions
4.5' x 4.5 ' (54" x 54" x 6")
Table Side Height
6"
Table Thickness
1/2"
Hole Diameter
3/4"
Grid Pattern
2"
Material
Gray Cast Iron
Finish
Dragon Scale
Table Top Weight
xx lb
Shipping Weight
xx lb Shipping Weight
Leg Type
Heavy Duty
Number of Legs
x4
Capacity Per Leg
1,500 lbs
Rated Weight Capacity with Legs
6,500 lbs
Spacer Requirement for Tacking Bolt Use (Sold Separately)
These spacers are designed for table systems with 3/4" diameter holes where the table thickness is less than 1".
Fireball tacking bolts are designed to clamp 1" thick Fireball blocks to 1" thick tables. When used with thinner tables, a spacer is required to achieve proper clamping force.
For Pro Series & Dragon Wagon & Standard Duty Tables which are 1/2" thick, we recommend using one 1/2" thick FA75-BSP050 spacer per tacking bolt.
FA75-BSP050 spacers are required for proper use and are sold separately.
Fixed Height
Leg Height: 26"
Table Surface Height: 34"
Leveling Pad: +/- 1"
Static Load Capacity: 2,000 lb
Weight: 30.8 lb
Adjustable Height
Leg Height: 24" - 38"
Table Surface Height: 32" - 46"
Leveling Pad: +/- 1"
Static Load Capacity: 2,000 lb
Weight: 40.7 lb
Adjustable Height + Caster
Leg Height: 22" - 30
Table Surface Height: 30" - 35"
Leveling Pad: +/- 1"
Static Load Capacity: 1,700 lb
Weight: 36.3 lb
Cast Tower Leg Block
Leg Height: 27"
Table Surface Height: 35"
Leveling Pad: +/- 1"
Grid Pattern: 2"
Static Load Capacity: 2,000 lb
Weight: 130 lb
What Is Dragon Scale Coating?
Superior Anti-Spatter Properties
Improved Corrosion Resistance
Enhanced Wear Resistance
Steel vs Dragon Scale Coating
Nitride vs Dragon Scale Coating
Full Video (Dragon Scale Demo)
Why We Chose Gray Cast Iron?
It Is A Dimensionally Stable Material
Naturally Spatter Resistant
Allows Single Piece Pouring for Ultimate Rigidity & Flatness.
What makes the 3/4" Hole System Superior to 16mm and 5/8"
45% larger hole cross section while still allowing 2” spacing on table and 1” spacing on accessories.
3/4" System
5/8" & 16mm System
What makes the 3/4” Hole System Superior to 28mm
2” hole spacing on tables vs 4” hole spacing.
- 92% more holes
3/4" System
25 Holes Per 12"x12" Section
28mm System
13 Holes Per 12"x12" Section
Explaining FA75 Fixture System
- The entire Fireball Table system is based on 3/4” diameter hole sizes on a 2” grid pattern.
- All fixtures are also based on a 3/4” diameter hole size and use 1” thick by 2” wide fixtures.
- Tables and plates come in different thicknesses for different applications and price points, but ALL Fireball 3/4” fixtures are compatible with ALL Fireball 3/4” tables whether it’s a 3500 lb heavy duty table or a portable 50 lb plate.
Why 3/4” Hole System
- 45% larger cross section compared to ⅝” and 16mm holes means strong bolts, stronger clamp.
- Largest hole size while still having a 2” grid pattern on the table and 1” hole pattern on fixtures.
Why 2” Grid Pattern
- The 2” grid pattern is the ideal hole density to get clamps and fixtures where you need them.
- Many fixtures require 2 bolts to properly align them. Having a 2” grid pattern allows shorter, more compact fixtures compared to 4” hole spacing. This is even more important when fixtures have slots to bridge the gap to the next hole, and is the difference between a 4” on a 2” grid, vs an 8” slot on a 4” grid.
What Sets Every Fireball Table Apart
• Oversized Surface Area — Fireball tables are larger than the industry-standard 4×8 format, providing approximately 20% more working surface. That extra space matters when positioning fixtures around a full-sized weldment.
• Higher Hole Resolution — The 3/4-inch hole system at tighter hole centers gives you the strength advantages of a 28mm-style system combined with the finer positional resolution of a 16mm-style system — in one table.
• Machined Grid Lines and Perimeter Labeling — Every hole on a Fireball table has a unique label. Record exactly where every fixture was placed, come back weeks later, and set everything back up in minutes.
• 100% Cross-Compatibility — Every Fireball table uses the exact same hole centers and spacing. Your tooling works on every table, and any two tables can be combined seamlessly.
• The 3/4-Inch Hole — A Century-Old Standard — The 3/4-inch hole has been shared between woodworkers and blacksmiths for over 100 years. Standard off-the-shelf 3/4-inch bolts work directly in the table — no specialized fasteners required.
• Rigidity That Doesn’t Depend on Your Floor — Fireball tables are engineered so rigid that they do not need to be leveled to be flat. The table is isolated from the floor — whether your shop floor is perfectly flat or not, your table surface will be.
Unique Features of the Fireball Fixture System
The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.
Fireball Fixtures Combine strength of 28mm fixtures with hole spacing of ⅝” or 16mm fixtures.
Simple and fast fence blocks.
Precise and fast tooth block system.
Modular Block Systems.
Unique and versatile clamps.
Heavy Duty and Light Duty tables use the same fixtures and backward compatible (compare to ⅝ and 16mm, and 28mm)
Table Series Comparison
Full Specification Comparison
| X-Frame | Heavy Duty Series | Standard Duty Series | Dragon Wagon Series | Pro Series Kits | |
Hole Size | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" |
Grid Pattern | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" |
Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
Set Screw Leveling | | ||||
Flatness | (+/-) 0.007" | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005" (With Leveling)Entire Plate |
Sidewall Height | 8" | 8" | 6" | 4" | |
Material | P20 Tool Steel (Top Plate)Cast Iron (Frame) | Cast Iron | Cast Iron | Cast Iron | Steel |
Finish | Nitride (Top Plate)Dragon Scale (Frame) | Dragon Scale | Dragon Scale | Dragon Scale | Dragon Scale |
Grid Lines | Yes | Yes | Yes | Yes | No |
Coordinate System | Yes | Yes | Yes | Yes | No |
Legs | Heavy Duty | Heavy Duty | Standard Duty | Standard Duty | Angle Iron |
Tacking Bolt Spacer Size | 1/2" | 1/2" | 1/2" |
Available Sizes
| Nominal Size (ft) | Dimensions (inch) | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Series |
| 13 x 6.5 | 156 x 78 | |||||
| 10 x 5 | 122 x 60 | |||||
| 6.5 x 6.5 | 78 x 78 | |||||
| 8.5 x 4.5 | 102 x 54 | |||||
| 6.5 x 4.5 | 78 x 54 | |||||
| 4.5 x 4.5 | 54 x 54 | |||||
| 6 x 3 | 72 x 36 | |||||
| 4.5 x 2.5 | 54 x 30 | |||||
| 3 x 3 | 36 x 36 | |||||
| 3 x 2 | 36 x 24 | |||||
| 2 x 1.5 | 24 x 20 |
Features
| Feature | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Line |
| Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
| Sidewall Height | 8" | 8" | 6" | 4" | None |
Choosing The Table That’s Right For You
The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.
X Frame
X Frame tables feature a rigid cast iron base with a nitrided, 1" thick tool steel plate on the top surface for added wear resistance.
- Tool Steel Plates that can be reversed or replaced
- Each plate features leveling screws to dial in flatness
- P20 Tool Steel with Nitride Finish for HRC50 hardness provides extra wear resistance
- Railroad Track style ribbing for extra rigidity
Heavy Duty
Heavy Duty Series Tables feature single piece, cast iron construction for best rigidity and flatness with 1" thick top and sides.
- Machined from single piece casting, 1” Thick Top and Sides
- Our most rigid table series
Standard Duty
Same construction method as heavy duty series, but with 1/2" thick top and sides.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Railroad track style ribbing for extra rigidity
Pro Line
Ultimate work station solution that keeps everything organized.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Reinforced railroad track style ribbing on perimeter for extra rigidity
| Your Situation | Recommended Table |
| Multi-material work, high-production with crane loading, resurfaceable top | X-Frame |
| Heavy structural work, frame straightening, large weldments | Heavy Duty |
| Professional fabricator, everyday production work | Standard Duty |
| Mobile workstation, robotic cell, compact shop, combinable layout | Dragon Wagon |
| Student, hobbyist, light repair, farm maintenance | Pro Table |
