Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")
Roll over image to zoom in Click on image to zoom
Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")

Heavy Duty Welding Table, 14' x 2.5' (168" x 30" x 8")

Save $1,556.00
Fireball ToolSKU: FA75-TCG16830-C1
Legs: Adjustable Caster Legs
Price:
$14,004 USD $15,560 USD

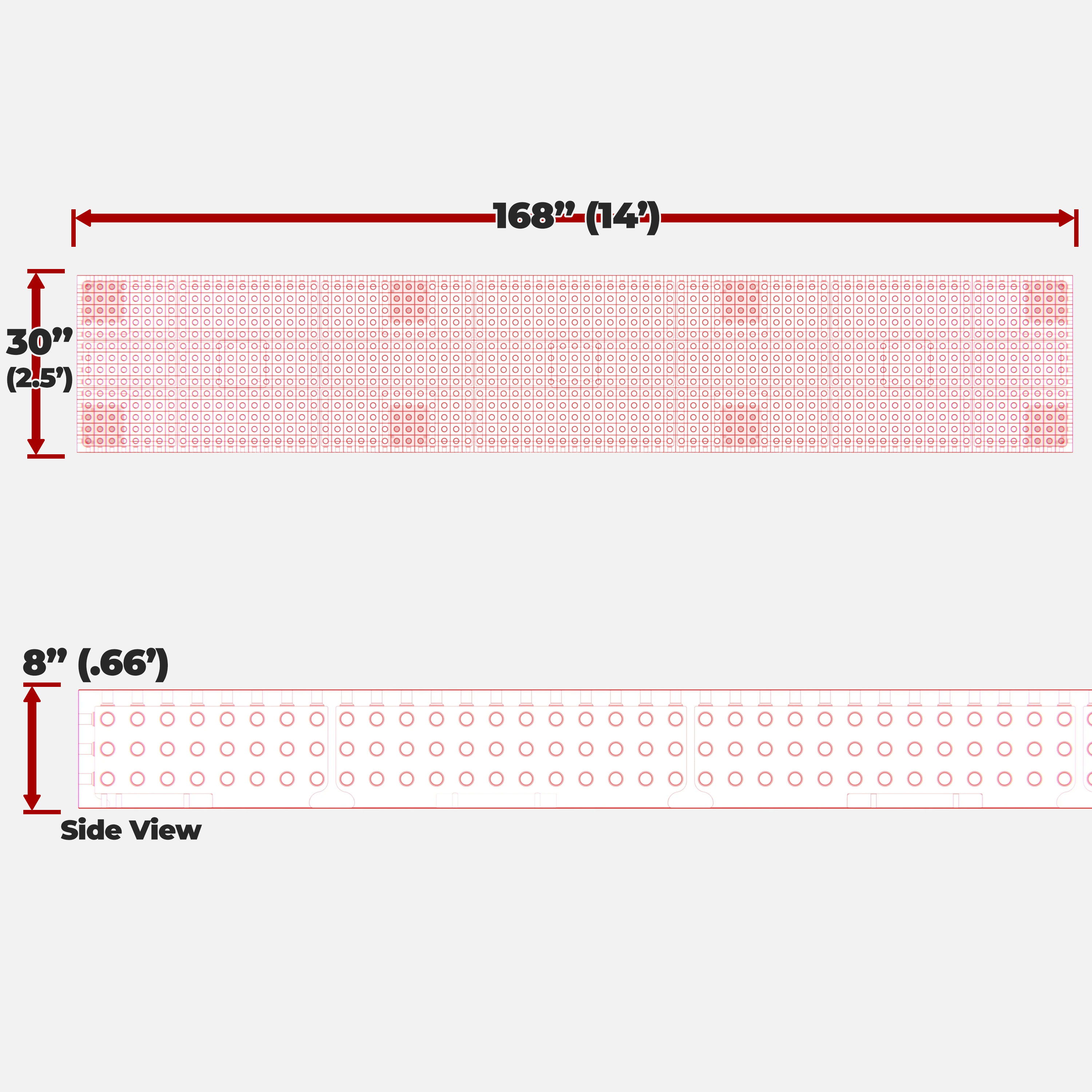

14' x 2.5' (168" x 30" x 8")

The Fireball Cast Iron Tables are the best all around tables on the market. They combine the strength of 1” thick top and sides used for heavy duty tables with the more finely spaced 2” grid pattern you find on light to medium duty tables. Gray cast iron naturally resists weld spatter, does not form burrs on the surface, resists deformation, and once machined flat, it stays flat.

Combined with the patent pending Fireball 3/4" Fixture System, Fireball tables and fixtures are the fastest, simplest, and most secure fixture system.

Table Series Comparison

Features

Feature X-Frame Heavy Duty Standard Duty Dragon Wagon Pro Line

Plate Thickness

1"

1"

1/2"

1/2"

1/2"

Sidewall Height

8"

8"

6"

4"

None

Available Sizes

Nominal Size (ft) Dimensions (inch) X-Frame Heavy Duty Standard Duty Dragon Wagon Pro Line

13 x 6.5

156 x 78

10 x 5

122 x 60

6.5 x 6.5

78 x 78

8.5 x 4.5

102 x 54

6.5 x 4.5

78 x 54

4.5 x 4.5

54 x 54

6 x 3

72 x 36

4.5 x 2.5

54 x 30

3 x 3

36 x 36

3 x 2

36 x 24

2 x 1.5

24 x 20

Choosing The Table That’s Right For You

The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.

X Frame

X Frame tables feature a rigid cast iron base with a nitrided, 1" thick tool steel plate on the top surface for added wear resistance.

  • Tool Steel Plates that can be reversed or replaced
  • Each plate features leveling screws to dial in flatness
  • P20 Tool Steel with Nitride Finish for HRC50 hardness provides extra wear resistance
  • Railroad Track style ribbing for extra rigidity

Heavy Duty

Heavy Duty Series Tables feature single piece, cast iron construction for best rigidity and flatness with 1" thick top and sides.

  • Machined from single piece casting, 1” Thick Top and Sides
  • Our most rigid table series

Standard Duty

Same construction method as heavy duty series, but with 1/2" thick top and sides.

  • Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
  • Railroad track style ribbing for extra rigidity

Pro Line

Ultimate work station solution that keeps everything organized.

  • Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
  • Reinforced railroad track style ribbing on perimeter for extra rigidity

Specifications

X-Frame Heavy Duty Series Standard Duty Series Dragon Wagon Series Pro Table Kits 24x12 Plate Drill Press Plate 14" Dia. PlatePlate

Hole Size

3/4"

3/4"

3/4"

3/4"

3/4"

3/4"

3/4"

3/4"

Grid Pattern

2" x 2"

2" x 2"

2" x 2"

2" x 2"

2" x 2"

2" x 2"

2" x 2"

+ Extra Offset 2"x2" Tapped 1/2-13

2" x 2"

+ Extra 2"x2" Offset Pattern

Plate Thickness

1"

1"

1/2"

1/2"

1/2"

3/4"

5/8"

5/8"

Set Screw Leveling

Flatness

(+/-) 0.035"

Top Plate

(+/-) 0.005"

Entire Table

(+/-) 0.005"

Entire Table

(+/-) 0.005"

Entire Table

(+/-) 0.005" (With Leveling)

Entire Plate

(+/-) 0.005"

Entire Plate

(+/-) 0.010"

Entire Plate

(+/-) 0.007"

Entire Table

Sidewall Height

8"

8"

6"

4"

Material

P20 Tool Steel (Top Plate)

Cast Iron (Frame)

Cast Iron

Cast Iron

Cast Iron

Steel

Cast Iron

Steel

Steel

Finish

Nitride (Top Plate)

Dragon Scale (Frame)

Dragon Scale

Dragon Scale

Dragon Scale

Dragon Scale

Dragon Scale

Nitride

Dragon Scale

Grid Lines

Yes

Yes

Yes

Yes

No

No

No

No

Coordinate System

Yes

Yes

Yes

Yes

No

No

No

No

Legs

Heavy Duty

Heavy Duty

Standard Duty

Standard Duty

Angle Iron

Tacking Bolt Spacer Size

1/2"

1/2"

1/2"

1/4"

3/8"

3/8"

Fixed Height

Leg Height: 26"

Table Surface Height: 34"

Leveling Pad: +/- 1"

Static Load Capacity: 2,000 lb

Weight: 30.8 lb

Adjustable Height

Leg Height: 24" - 38"

Table Surface Height: 32" - 46"

Leveling Pad: +/- 1"

Static Load Capacity: 2,000 lb

Weight: 40.7 lb

Adjustable Height + Caster

Leg Height: 22" - 30

Table Surface Height: 30" - 38"

Leveling Pad: +/- 1"

Static Load Capacity: 1,700 lb

Weight: 36.3 lb

Cast Tower Leg Block

Leg Height: 27"

Table Surface Height: 35"

Leveling Pad: +/- 1"

Grid Pattern: 2"

Static Load Capacity: 2,000 lb

Weight: 130 lb
