Every Fireball table shares the same 3/4" hole system on a 2" grid, so your fixtures, clamps, and tooling work on every table in the lineup - from a portable 50 lb plate to a 3,500 lb production table. The five series differ in plate thickness, sidewall height. rigidity, and size - pick the one that fits your shop, your budget, and your work.
More Stuff
FIND YOUR TABLE
| Your Situation | Recommended Series | Why |
| Multi-material work, crane loading, resurfaceable top, highest precision. | 1" P20 toool steel top plate, replaceable & reversible, leveling screws for each plate. | |
| Heavy structural work, frame straightening. large weldments. | Single-piece cast iron, 1" thick top & sides, 8" side wall - Most rigid series | |
| Professional fabricator, everyday production, full time shop use. | Same singl-piece casting as Heavy Duty but 1/2" thick - Serious capability, lower price | |
| Mobile setup, robotic cell, compact shop, tables you can combine or move. | Portable, 1/2" thick, 4" sidewall, caster options - starts at under $2,000 | |
| Student, hobbyist, light repair, farm & ranch maintenance. | Affordable 1/2"flat plate kit - add angle-iron legs, scale up later |
LEG OPTIONS - AVAILABLE ON ALL SERIES
| Option | Fixed height | Adjustable |
| Best For | Maximum rigidity, stationary shop | Ergonomic height, sit/stand use |
| Price Impact | Standard (no upcharge) | Moderate Upcharge |
All tables are available in all three leg configurations. Replacement legs and casters are also sold individually under Replacement Table Parts
X-Frame
From $7,380
Best For: Multi-material production, crane loading, highest precision.
Top Plate: 1" P20 Tool Steel (Nitrided,, replaceable)
Sidewall: 8" cast Iron
Flatness: +/ 0.005" (w/ leveling screws)
Sizes: 54"x54" up to 122"x60"

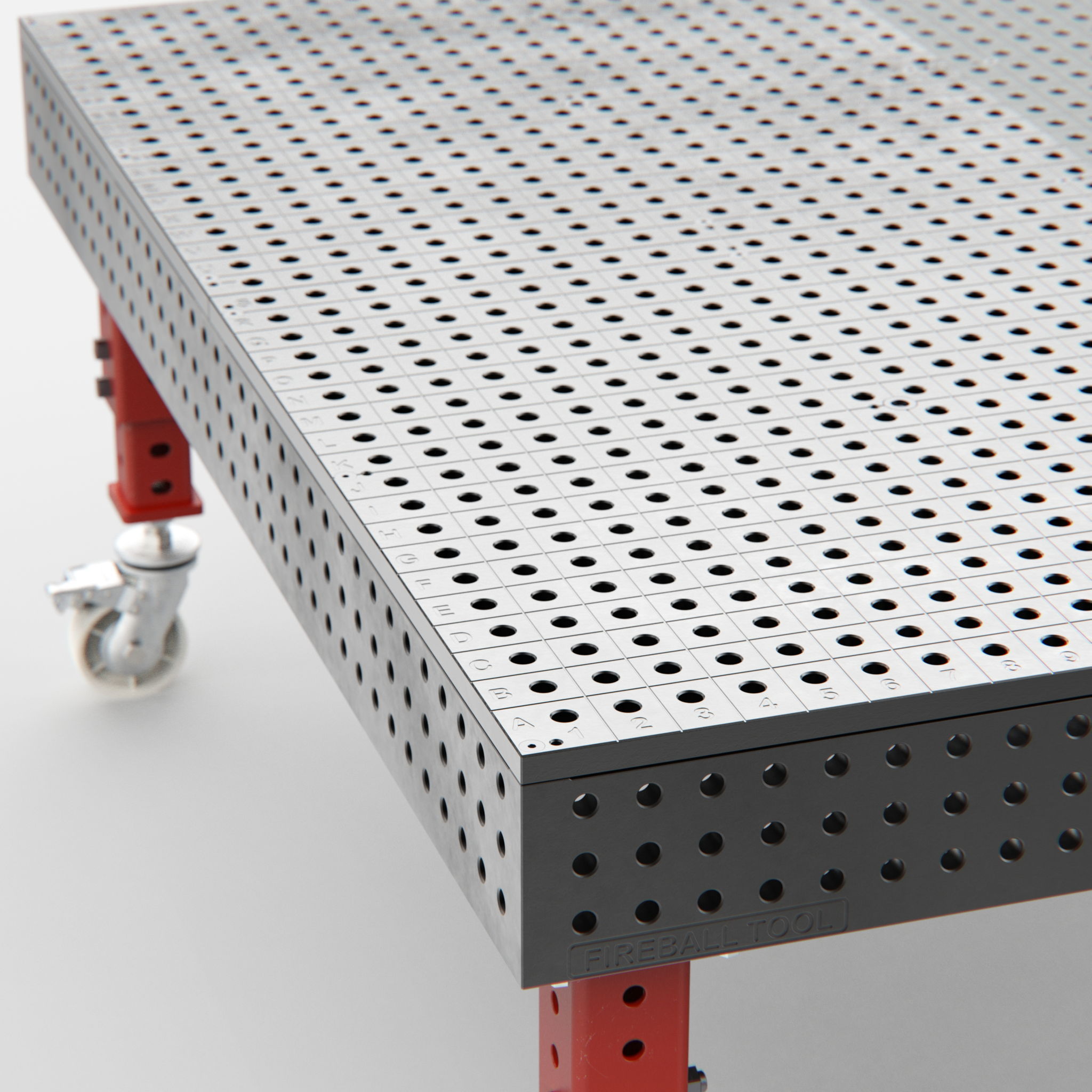

Heavy Duty
From $6,700
Best For: Heavy Structural fab, frame straightening, large weldments.
Top Plate: 1" cast iron (single-piece casting)
Sidewall: 8" cast Iron
Flatness: +/ 0.005" (entire table)
Sizes: 54"x54" up to 156"x78"

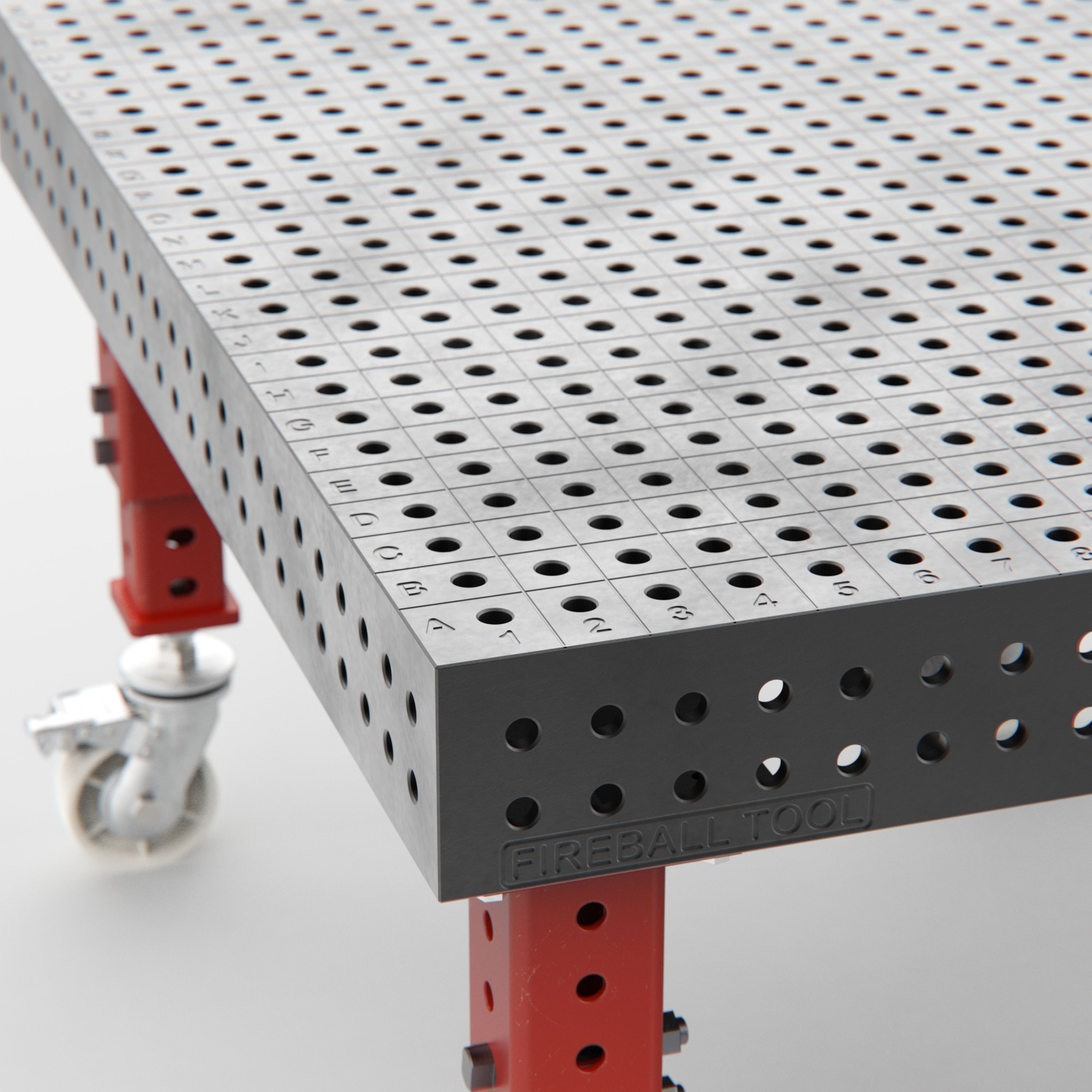

Standard Duty
From $4,800
Best For: Professional fabricatior, daily production work
Top Plate: 1/2" cast iron (single-piece casting)
Sidewall: 6" cast Iron
Flatness: +/ 0.005" (entire table)
Sizes: 54"x54" up to 102"x54"
Dragon Wagon
From $1,900
Best For: Mobile setup, compact shop, robotic cell, combinable layout.
Top Plate: 1/2" cast iron (single-piece casting)
Sidewall: 4" cast iron
Flatness: +/ 0.010" (entire table)
Sizes: 36"x24" up to 54"x30"

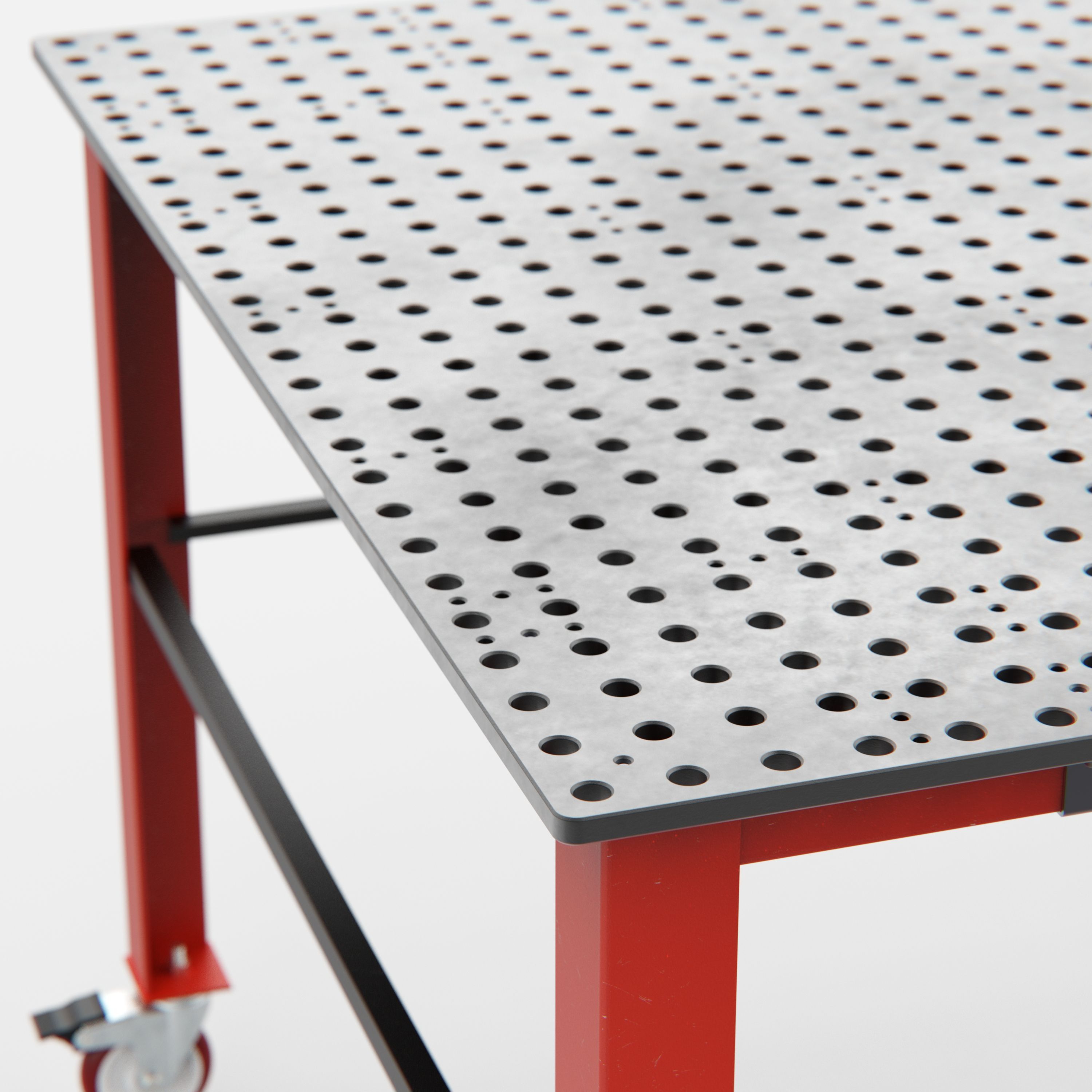

Pro Series Kits
From $790
Best For: Students, hobbyists, light repair, farm & ranch maintenance.
Top Plate: 1/2" Steel flat plate
Sidewall: None (Flat plate kit)
Flatness: +/ 0.010" (w/ leveling screws)
Sizes: 36"x36" up to 72"x36"
Start small, scale up. Every table uses identical 3/4" holes on a 2" grid- so fixtures you buy today work on every Fireball table you'll ever own. Start with a Pro Table plate and upgrade to a Heavy Duly table later; your entire tooling investment transfers immediately.
Table Series Comparison
Full Specification Comparison
| X-Frame | Heavy Duty Series | Standard Duty Series | Dragon Wagon Series | Pro Series Kits | |
Hole Size | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" |
Grid Pattern | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" | 2" x 2" |
Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
Set Screw Leveling | | ||||
Flatness | (+/-) 0.007" | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005"Entire Table | (+/-) 0.005" (With Leveling)Entire Plate |
Sidewall Height | 8" | 8" | 6" | 4" | |
Material | P20 Tool Steel (Top Plate)Cast Iron (Frame) | Cast Iron | Cast Iron | Cast Iron | Steel |
Finish | Nitride (Top Plate)Dragon Scale (Frame) | Dragon Scale | Dragon Scale | Dragon Scale | Dragon Scale |
Grid Lines | Yes | Yes | Yes | Yes | No |
Coordinate System | Yes | Yes | Yes | Yes | No |
Legs | Heavy Duty | Heavy Duty | Standard Duty | Standard Duty | Angle Iron |
Tacking Bolt Spacer Size | 1/2" | 1/2" | 1/2" |
Available Sizes
| Nominal Size (ft) | Dimensions (inch) | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Series |
| 13 x 6.5 | 156 x 78 | |||||
| 10 x 5 | 122 x 60 | |||||
| 6.5 x 6.5 | 78 x 78 | |||||
| 8.5 x 4.5 | 102 x 54 | |||||
| 6.5 x 4.5 | 78 x 54 | |||||
| 4.5 x 4.5 | 54 x 54 | |||||
| 6 x 3 | 72 x 36 | |||||
| 4.5 x 2.5 | 54 x 30 | |||||
| 3 x 3 | 36 x 36 | |||||
| 3 x 2 | 36 x 24 | |||||
| 2 x 1.5 | 24 x 20 |
Features
| Feature | X-Frame | Heavy Duty | Standard Duty | Dragon Wagon | Pro Line |
| Plate Thickness | 1" | 1" | 1/2" | 1/2" | 1/2" |
| Sidewall Height | 8" | 8" | 6" | 4" | None |
Choosing The Table That’s Right For You
The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.

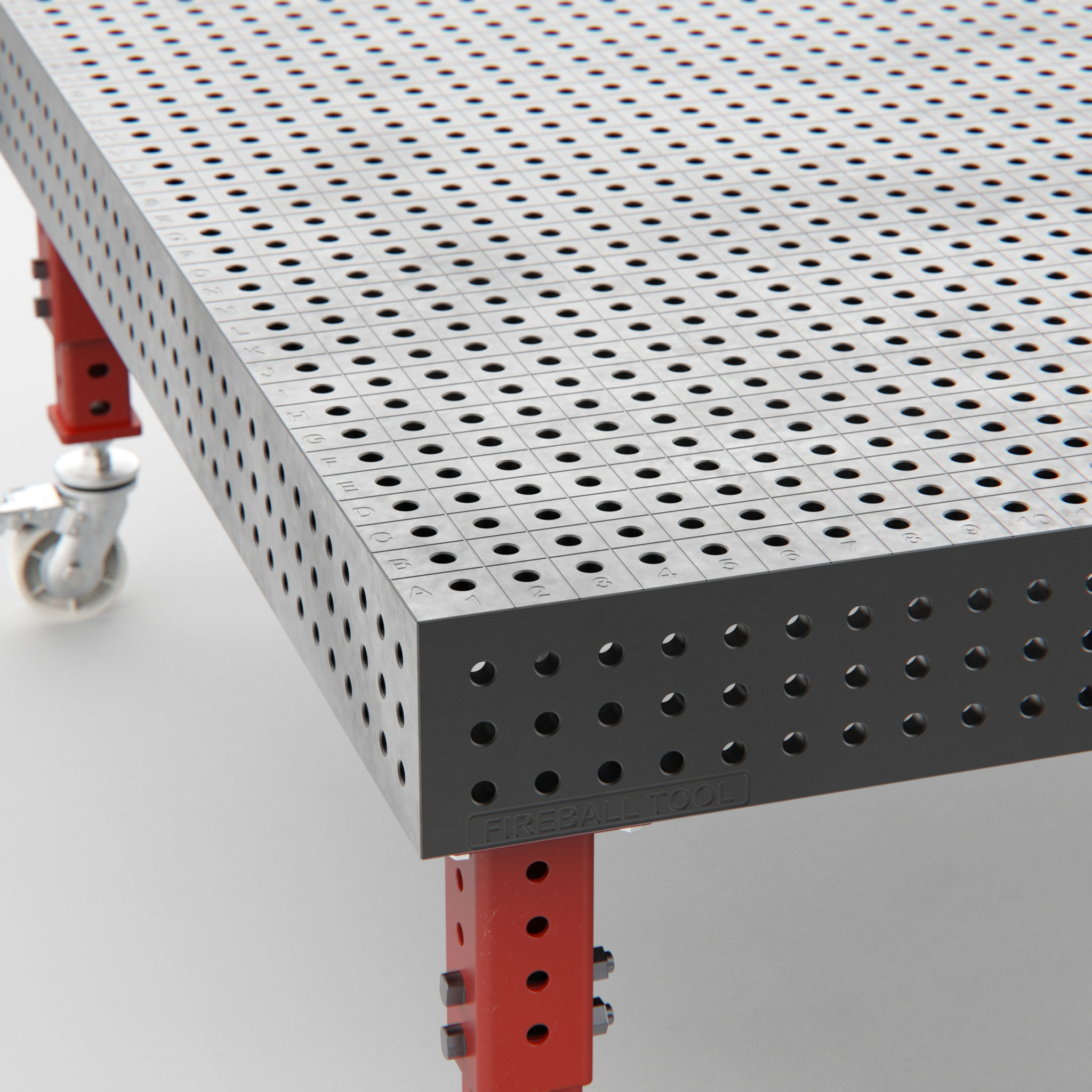

X Frame
X Frame tables feature a rigid cast iron base with a nitrided, 1" thick tool steel plate on the top surface for added wear resistance.
- Tool Steel Plates that can be reversed or replaced
- Each plate features leveling screws to dial in flatness
- P20 Tool Steel with Nitride Finish for HRC50 hardness provides extra wear resistance
- Railroad Track style ribbing for extra rigidity
Heavy Duty
Heavy Duty Series Tables feature single piece, cast iron construction for best rigidity and flatness with 1" thick top and sides.
- Machined from single piece casting, 1” Thick Top and Sides
- Our most rigid table series
Standard Duty
Same construction method as heavy duty series, but with 1/2" thick top and sides.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Railroad track style ribbing for extra rigidity

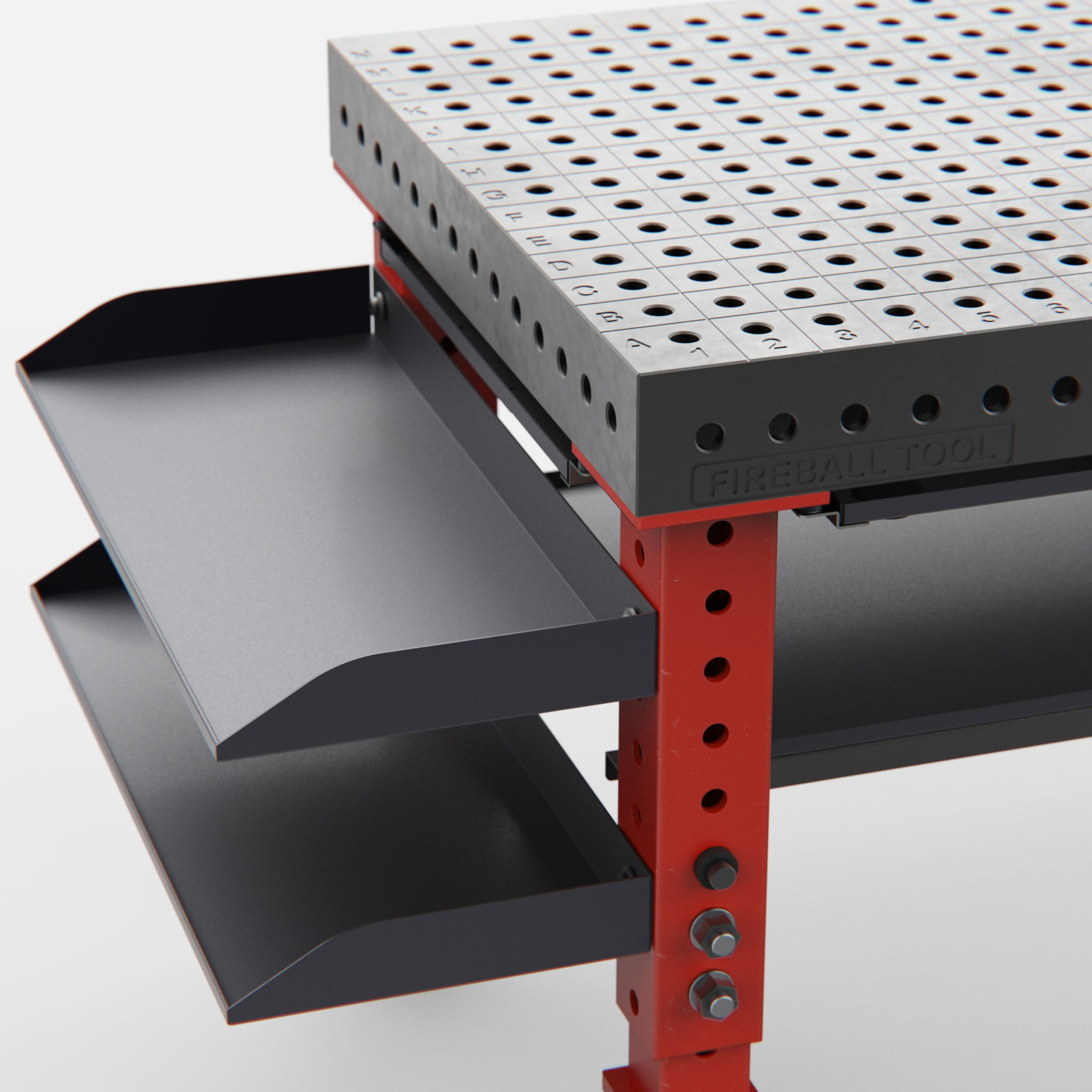

Pro Line
Ultimate work station solution that keeps everything organized.
- Machined from single piece casting. Holes machined to ½” thickness, with extra material and thickness on the underside
- Reinforced railroad track style ribbing on perimeter for extra rigidity
| Your Situation | Recommended Table |
| Multi-material work, high-production with crane loading, resurfaceable top | X-Frame |
| Heavy structural work, frame straightening, large weldments | Heavy Duty |
| Professional fabricator, everyday production work | Standard Duty |
| Mobile workstation, robotic cell, compact shop, combinable layout | Dragon Wagon |
| Student, hobbyist, light repair, farm maintenance | Pro Table |
What Is Dragon Scale Coating?
Superior Anti-Spatter Properties
Improved Corrosion Resistance
Enhanced Wear Resistance
Steel vs Dragon Scale Coating
Nitride vs Dragon Scale Coating
Full Video (Dragon Scale Demo)
Why We Chose Gray Cast Iron?
It Is A Dimensionally Stable Material
Naturally Spatter Resistant
Allows Single Piece Pouring for Ultimate Rigidity & Flatness.
Explaining FA75 Fixture System
- The entire Fireball Table system is based on 3/4” diameter hole sizes on a 2” grid pattern.
- All fixtures are also based on a 3/4” diameter hole size and use 1” thick by 2” wide fixtures.
- Tables and plates come in different thicknesses for different applications and price points, but ALL Fireball 3/4” fixtures are compatible with ALL Fireball 3/4” tables whether it’s a 3500 lb heavy duty table or a portable 50 lb plate.
Why 3/4” Hole System
- 45% larger cross section compared to ⅝” and 16mm holes means strong bolts, stronger clamp.
- Largest hole size while still having a 2” grid pattern on the table and 1” hole pattern on fixtures.
Why 2” Grid Pattern
- The 2” grid pattern is the ideal hole density to get clamps and fixtures where you need them.
- Many fixtures require 2 bolts to properly align them. Having a 2” grid pattern allows shorter, more compact fixtures compared to 4” hole spacing. This is even more important when fixtures have slots to bridge the gap to the next hole, and is the difference between a 4” on a 2” grid, vs an 8” slot on a 4” grid.
Expanded Table Sizes
- Typical tables are 4’x8’ long to work with sheet material, but this means the entire table surface is covered. Our unique sizes such as the 102”x54” table (8.5’ x 4.5’) allow you to fixture and clamp down on full 4’x8’ sheets. It may not sound like much, but by expanding our tables by 6” on each side, you get a lot more surface area to use.
- Our tables and plates are often designed with common widths to make it easy for join and expand tables in the future.
What makes the 3/4" Hole System Superior to 16mm and 5/8"
45% larger hole cross section while still allowing 2” spacing on table and 1” spacing on accessories.
3/4" System
5/8" & 16mm System
What makes the 3/4” Hole System Superior to 28mm
2” hole spacing on tables vs 4” hole spacing.
- 92% more holes
3/4" System
25 Holes Per 12"x12" Section
28mm System
13 Holes Per 12"x12" Section
What Sets Every Fireball Table Apart
• Oversized Surface Area — Fireball tables are larger than the industry-standard 4×8 format, providing approximately 20% more working surface. That extra space matters when positioning fixtures around a full-sized weldment.
• Higher Hole Resolution — The 3/4-inch hole system at tighter hole centers gives you the strength advantages of a 28mm-style system combined with the finer positional resolution of a 16mm-style system — in one table.
• Machined Grid Lines and Perimeter Labeling — Every hole on a Fireball table has a unique label. Record exactly where every fixture was placed, come back weeks later, and set everything back up in minutes.
• 100% Cross-Compatibility — Every Fireball table uses the exact same hole centers and spacing. Your tooling works on every table, and any two tables can be combined seamlessly.
• The 3/4-Inch Hole — A Century-Old Standard — The 3/4-inch hole has been shared between woodworkers and blacksmiths for over 100 years. Standard off-the-shelf 3/4-inch bolts work directly in the table — no specialized fasteners required.
• Rigidity That Doesn’t Depend on Your Floor — Fireball tables are engineered so rigid that they do not need to be leveled to be flat. The table is isolated from the floor — whether your shop floor is perfectly flat or not, your table surface will be.
Unique Features of the Fireball Fixture System
The Fireball 3/4 fixture system uses the same fixtures for all tables. So whether you are starting with a mobile 1/2" thick plate or a truck sized heavy duty table, all fixtures work on both tables.
