5.5"x 5.5" Dragon Wagon Leg Pad for PDY Kits

Fireball ToolSKU: FA75-DWLP-01-4BDK

Quanity: 4 Pack
Price:
Sale price$40 USD

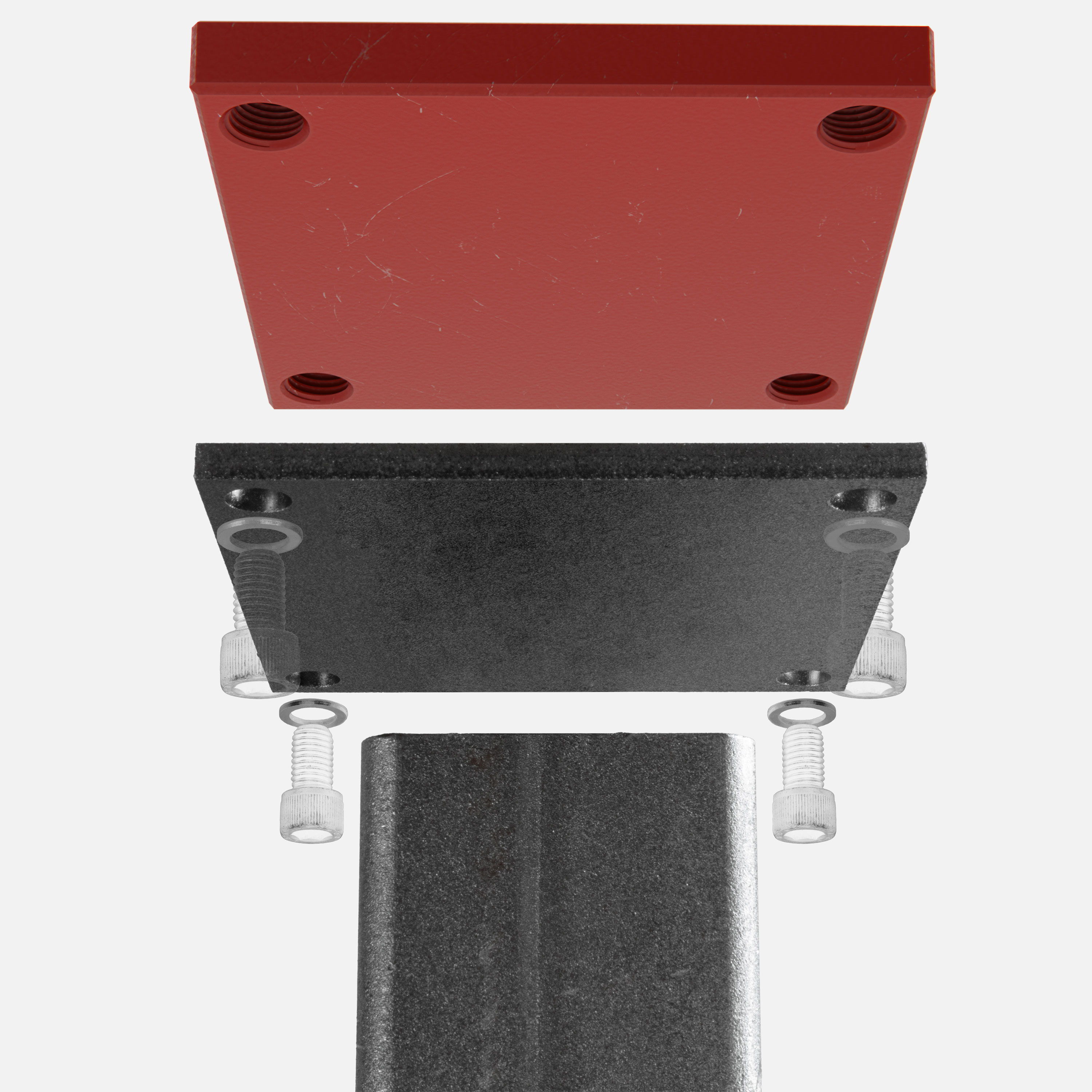

This weld-on leg pad is designed for use with our Pro Kit tables series. This plate welds to the table frame and features a threaded bolt pattern for our Dragon Wagon series legs.

  • IMPORTANT NOTE: Before welding, modifications may be required to accommodate the straps of the Pro Plate table, as sometimes these plates may interfere with the bolt-down straps. The straps can also be modified or welded to the frame as an alternative method.



This leg pad fits the following legs:

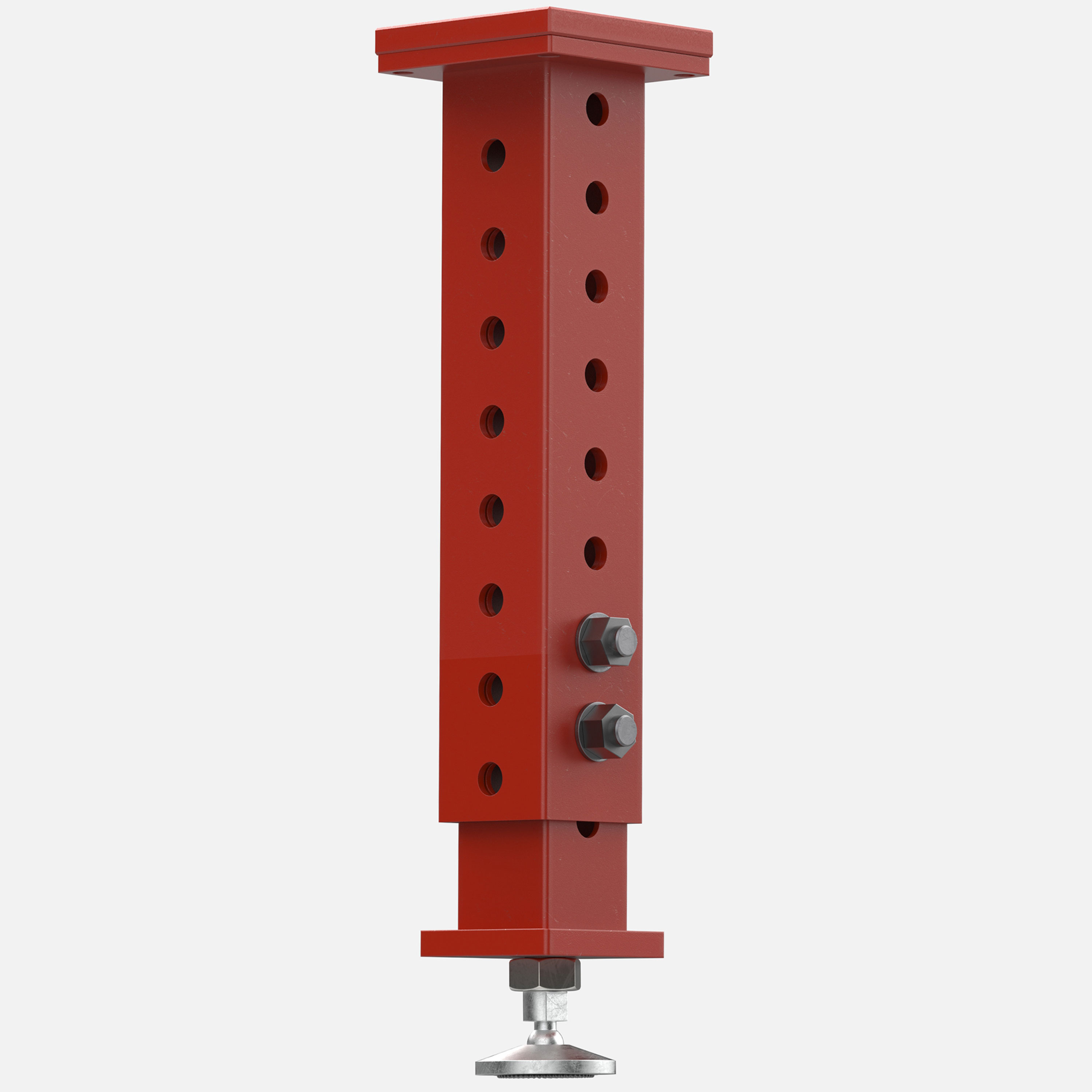

Red vertical support column with holes and adjustable base. Red vertical support column with holes and adjustable base.

Adjustable Height Leg

Leg Height: 21" - 31"

Table Surface Height: 25" - 35"

Static Load Capacity: 1,200 lb

Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness

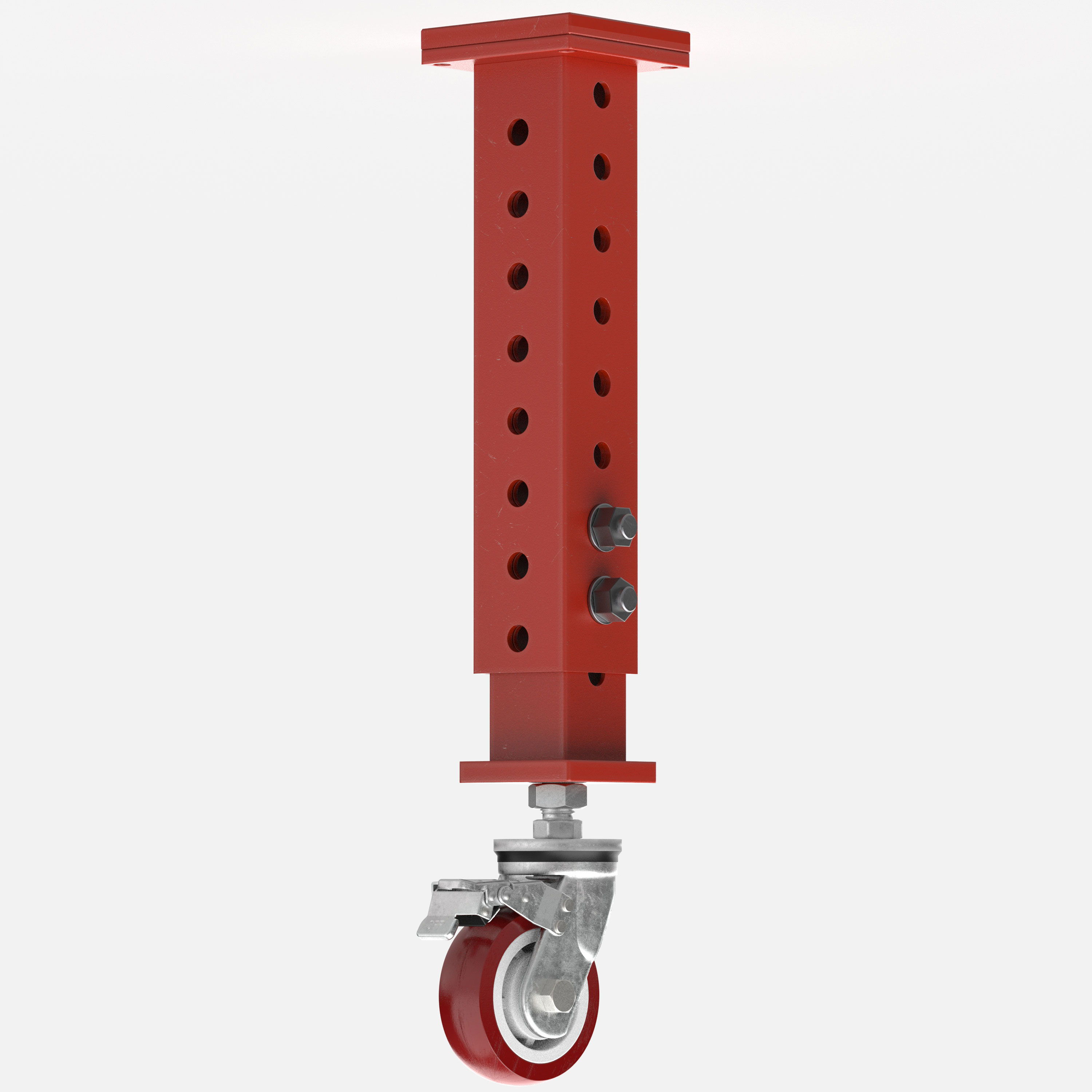

Adjustable Leg + Caster

Leg Height: 26" - 36"

Table Surface Height: 30" - 40"

Static Load Capacity: 750 lb

Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness

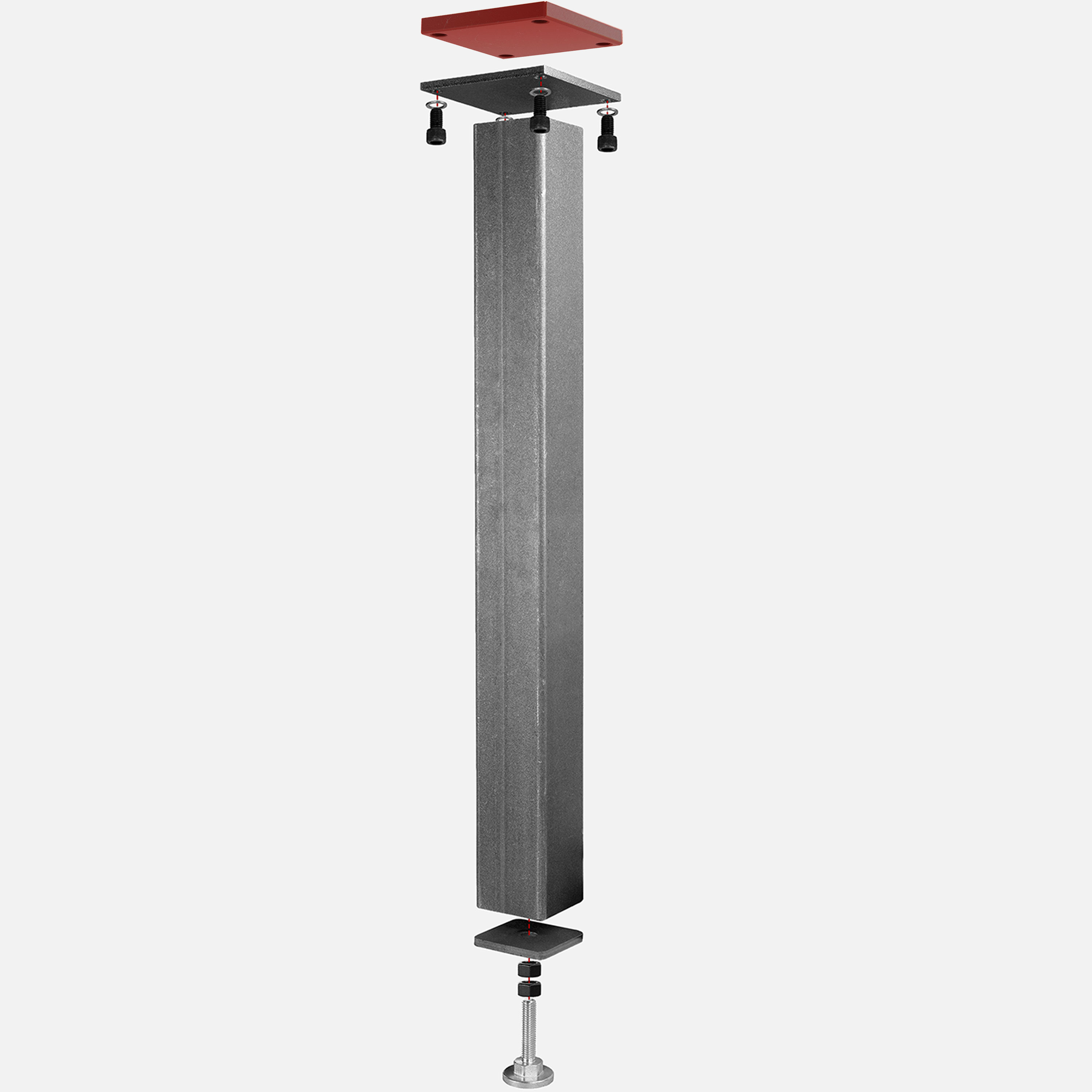

DIY Legs for 4-IN-1

Tube length: 29.5" (3/16 wall thickness)

Top Plate: 5/16" thick

Bottom Plate: 5/16" thick

Leveling Pad: 2" thread length (1/2-13 threads), 2.75" total length.

Nuts: 1/2-13 threads
