- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 4" ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 6" tall with 2 rows of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 1/2" thick table that shares all the same fixtures as the 1" thick table.
- Flatness (+/- .005) full length, corner to corner
More Stuff
Hybrid Design
Standard Duty Tabletop + Dragon Wagon Legs
Standard Duty Tabletop
Dragon Wagon Legs
FA75-TCH5454

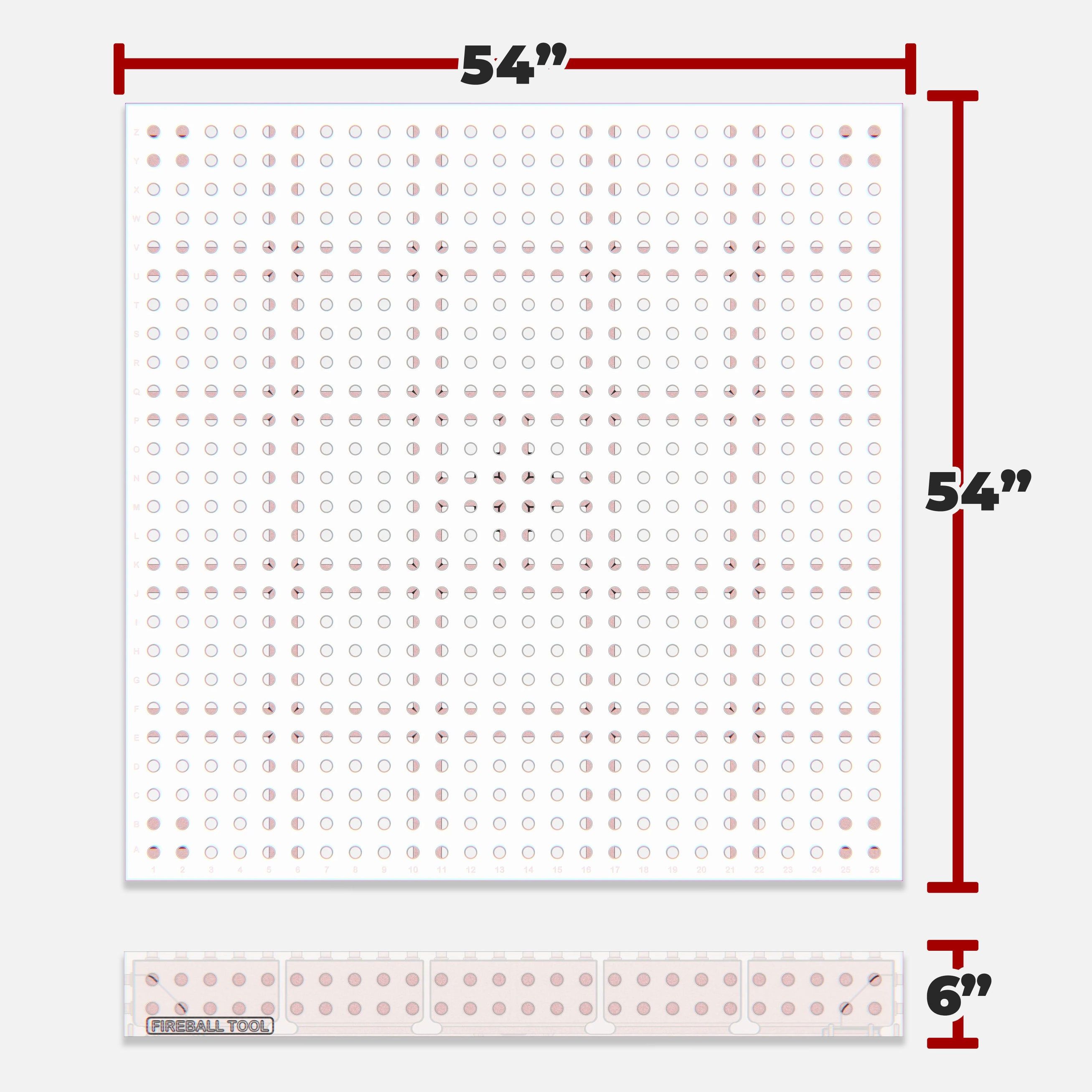

Tabletop Dimensions
54" x 54" (4.5' x 4.5')
Table Side Height
6"
Table Thickness
1/2"
Hole Diameter
3/4"
Grid Pattern
2"
Material
Gray Cast Iron
Finish
Dragon Scale
Table Top Weight
xxx lbs
Shipping Weight
xxx lbs
Leg Type
Standard Duty
Number of Legs
x4
Capacity Per Leg
600 lbs
Rated Weight Capacity with Legs
1,500 lbs
Connect Your Tables Together
Connect any number of tables together by using tacking bolts along with spacers.
Spacer Requirement for Tacking Bolt Use (Sold Separately)
These spacers are designed for table systems with 3/4" diameter holes where the table thickness is less than 1".
Fireball tacking bolts are designed to clamp 1" thick Fireball blocks to 1" thick tables. When used with thinner tables, a spacer is required to achieve proper clamping force.
For Pro Series & Dragon Wagon & Standard Duty Tables which are 1/2" thick, we recommend using one 1/2" thick FA75-BSP050 spacer per tacking bolt.
FA75-BSP050 spacers are required for proper use and are sold separately.
Adjustable Height Leg
Leg Height: 21" - 31"
Table Surface Height: 25" - 35"
Static Load Capacity: 1,200 lb
Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness
Adjustable Leg + Caster
Leg Height: 26" - 36"
Table Surface Height: 30" - 40"
Static Load Capacity: 750 lb
Outer Tube Outside Diameter: 3.3", 0.20" Thickness
Inner Tube Otuside Diameter: 2.75", 0.15" Thickness
DIY Legs 4-IN-1
Tube length: 29.5" (3/16 wall thickness)
Top Plate: 5/16" thick
Bottom Plate: 5/16" thick
Leveling Pad: 2" thread length (1/2-13 threads), 2.75" total length.
Nuts: 1/2-13 threads
