3-AXIS SQUARE

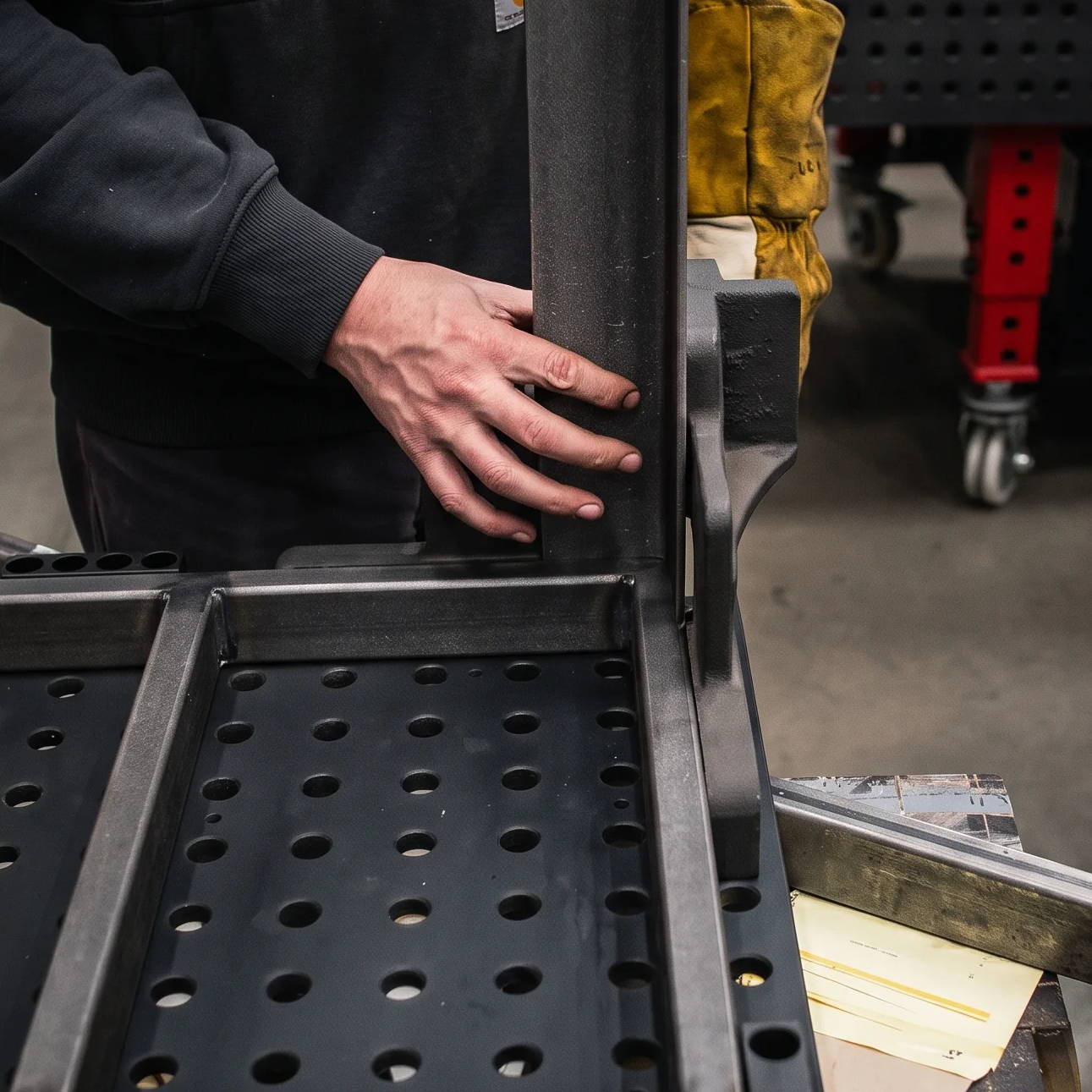

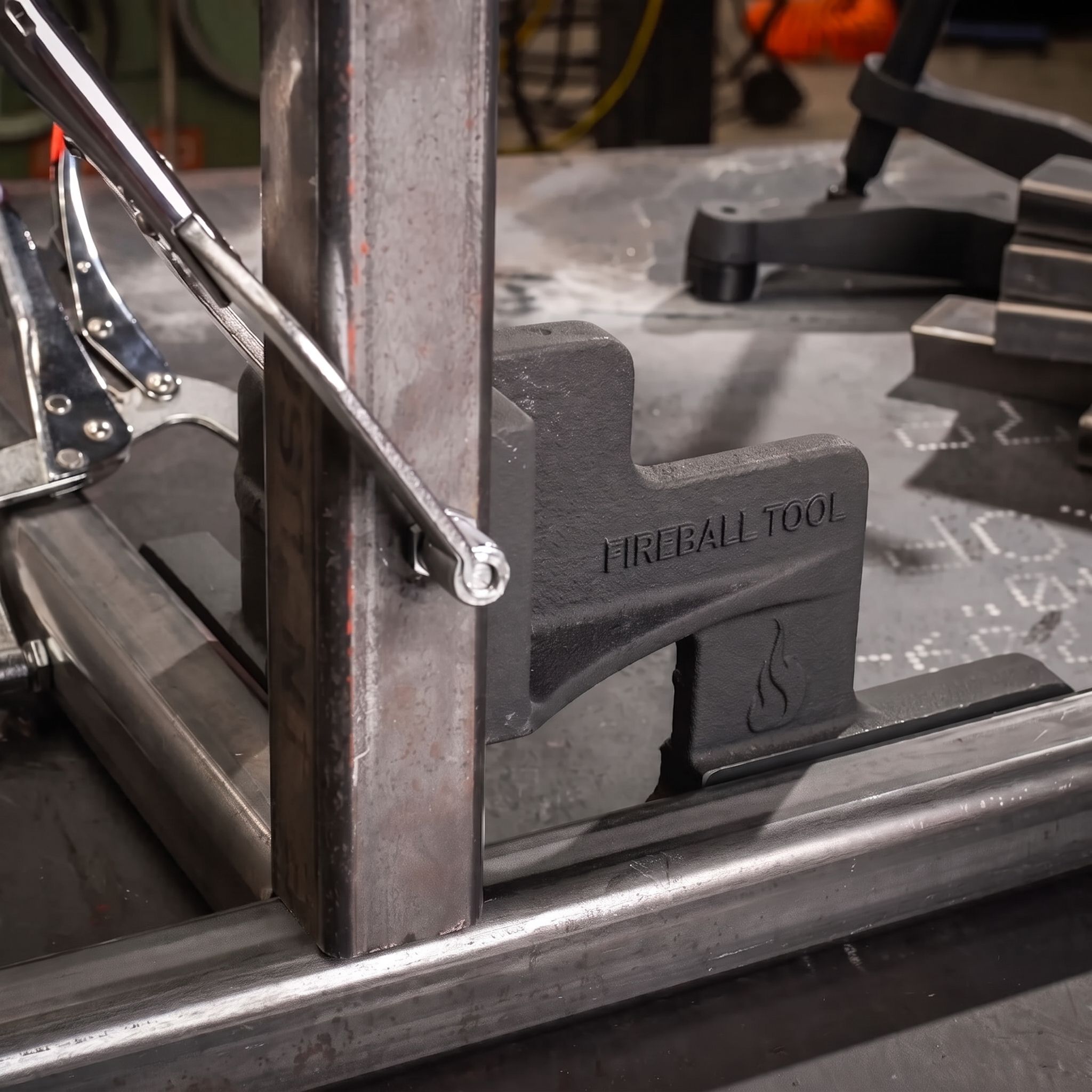

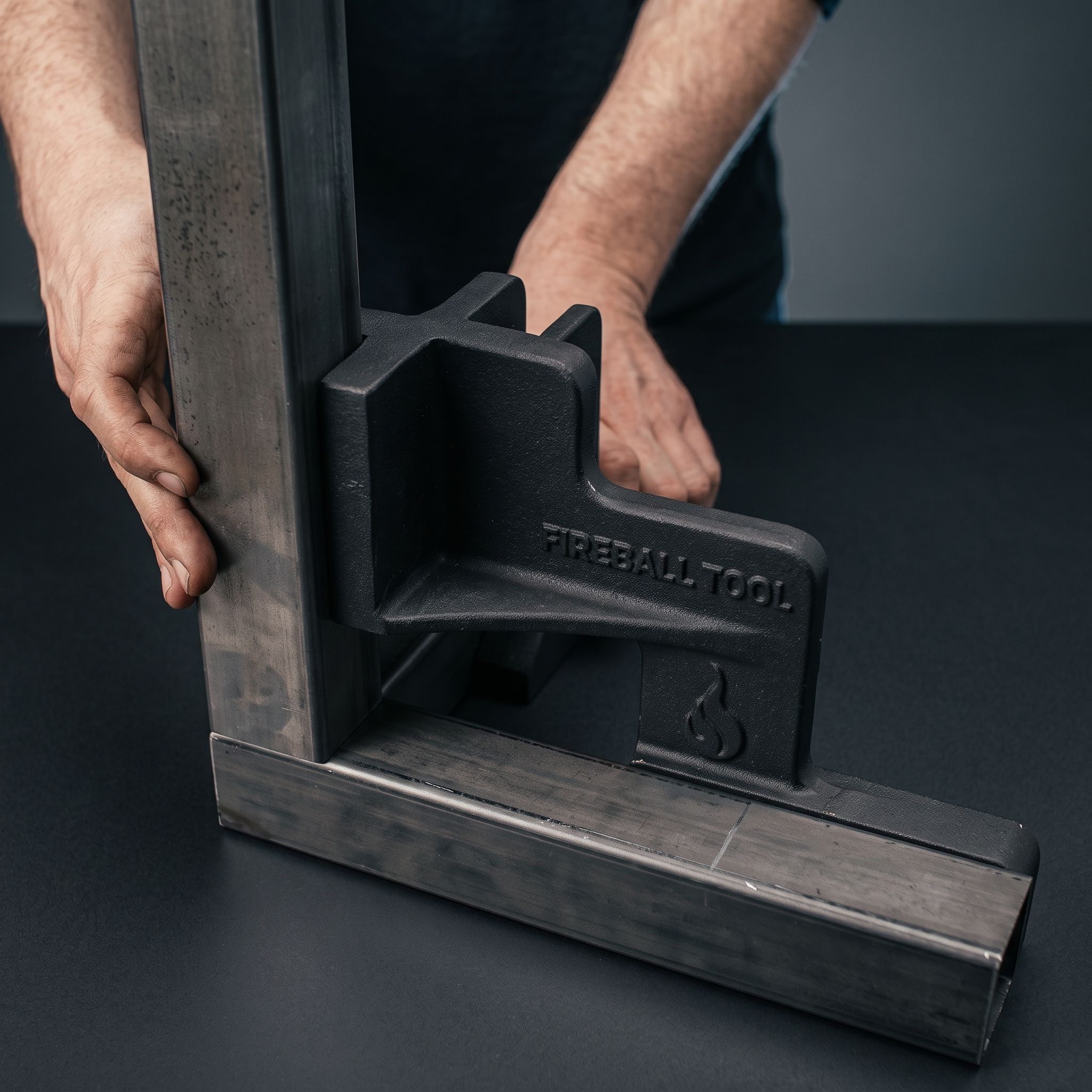

Add a third leg off a 90° corner—the square holds parts perpendicular, even outside your setup.

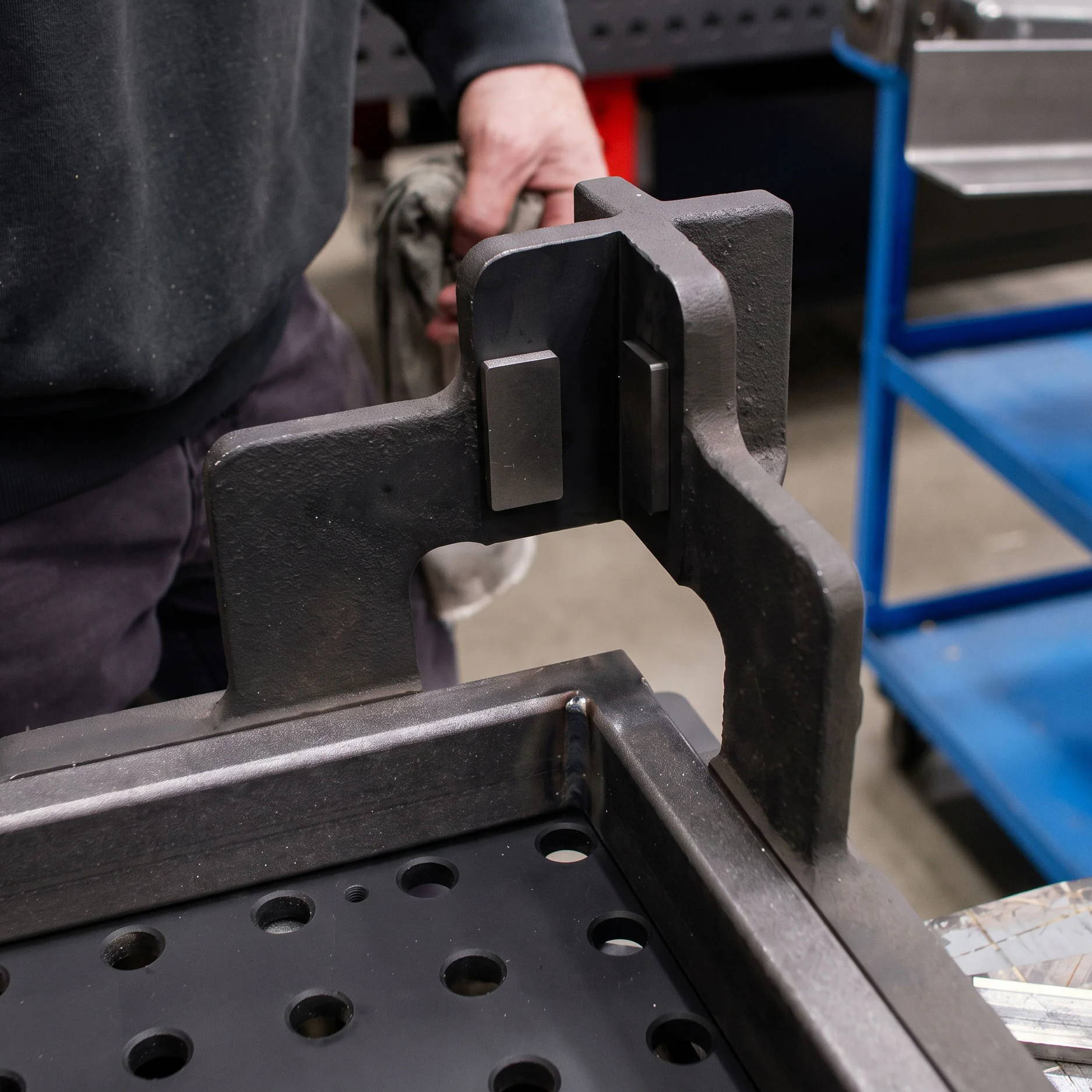

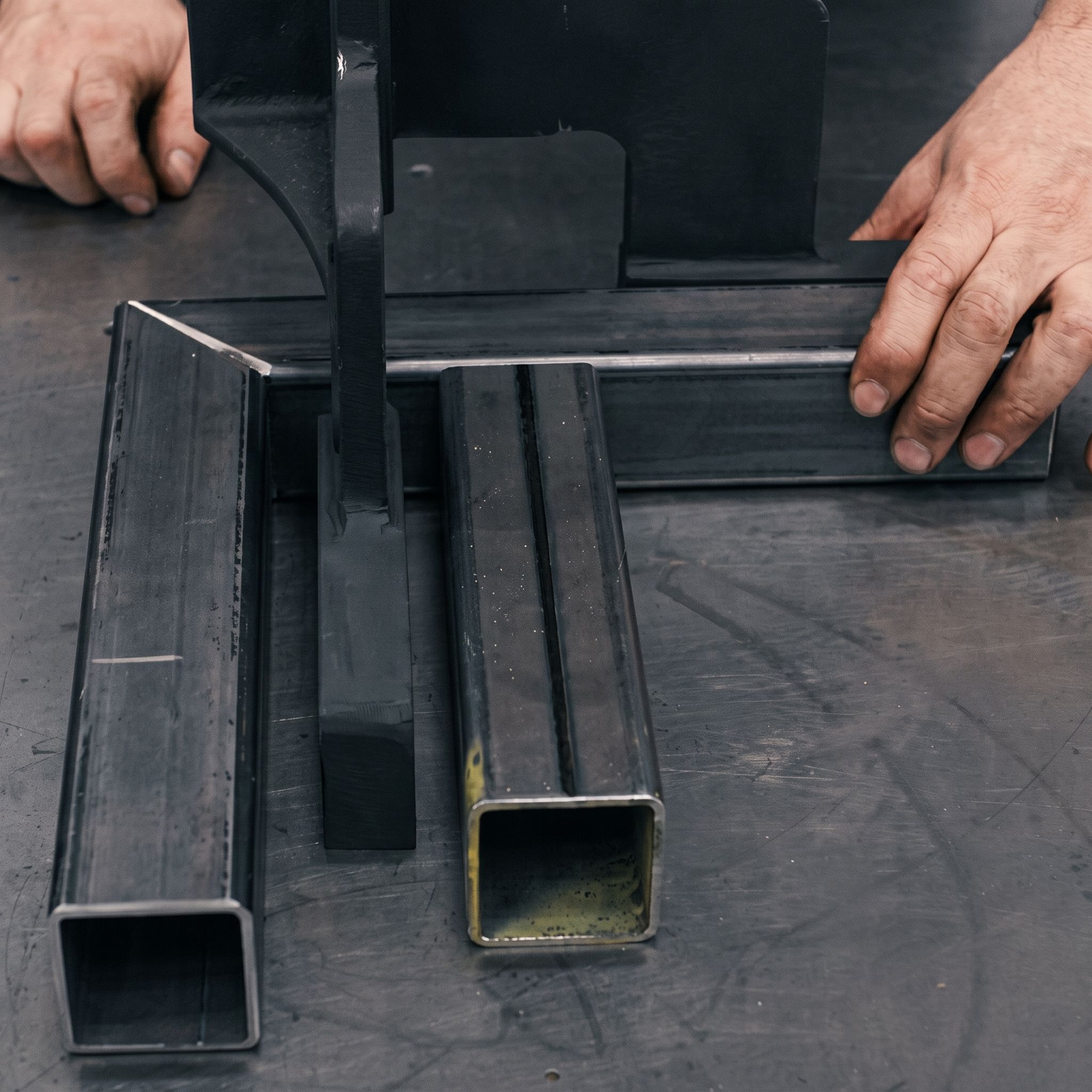

Move the square inside the setup to hold parts along the edge—no need to stay locked to the corner.
The thin foot design allows alignment in tight gaps, squaring the outside with materials in close proximity.

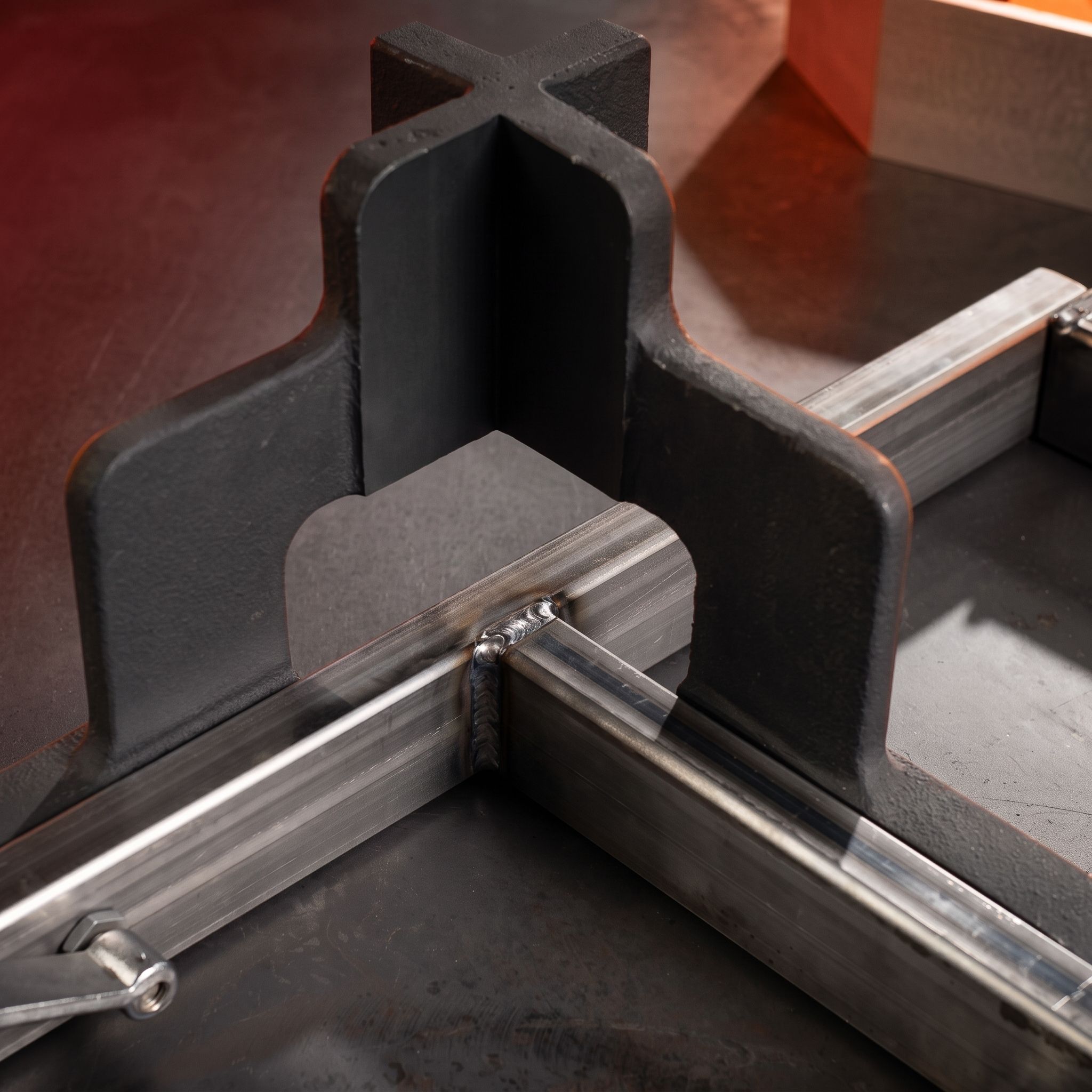

Passthrough with plenty of welding clearance for T-joints
Square Specifications
F5-TAS100-FE
Clamping Axis
3-Axis Clamping
Precision-machined Faces
4 on both inner and outer sides
Max Heights (Outside Face)
4"
Material
Dutile Cast Iron
Coating
Dragon Scale
Fixture Table Compatibility

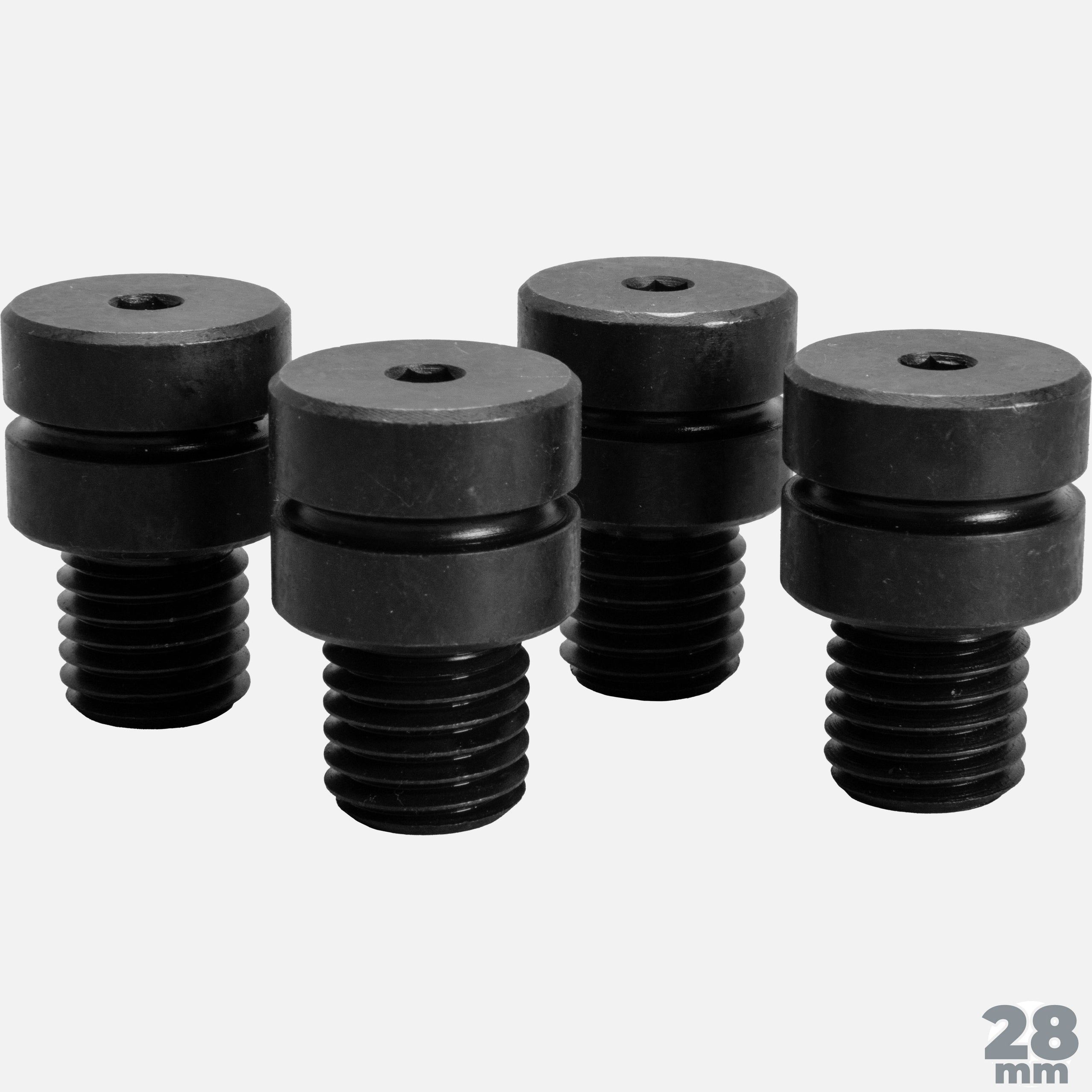

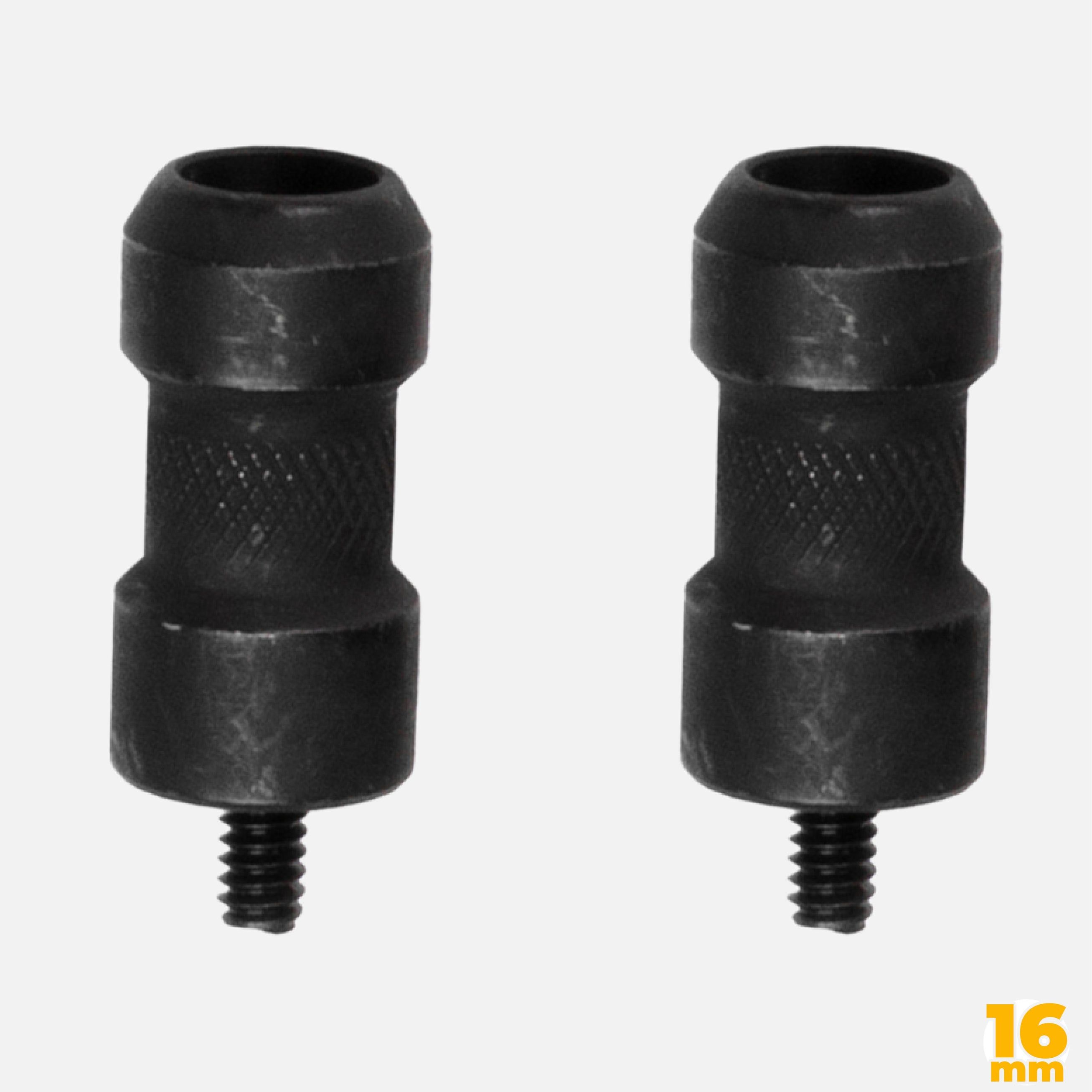

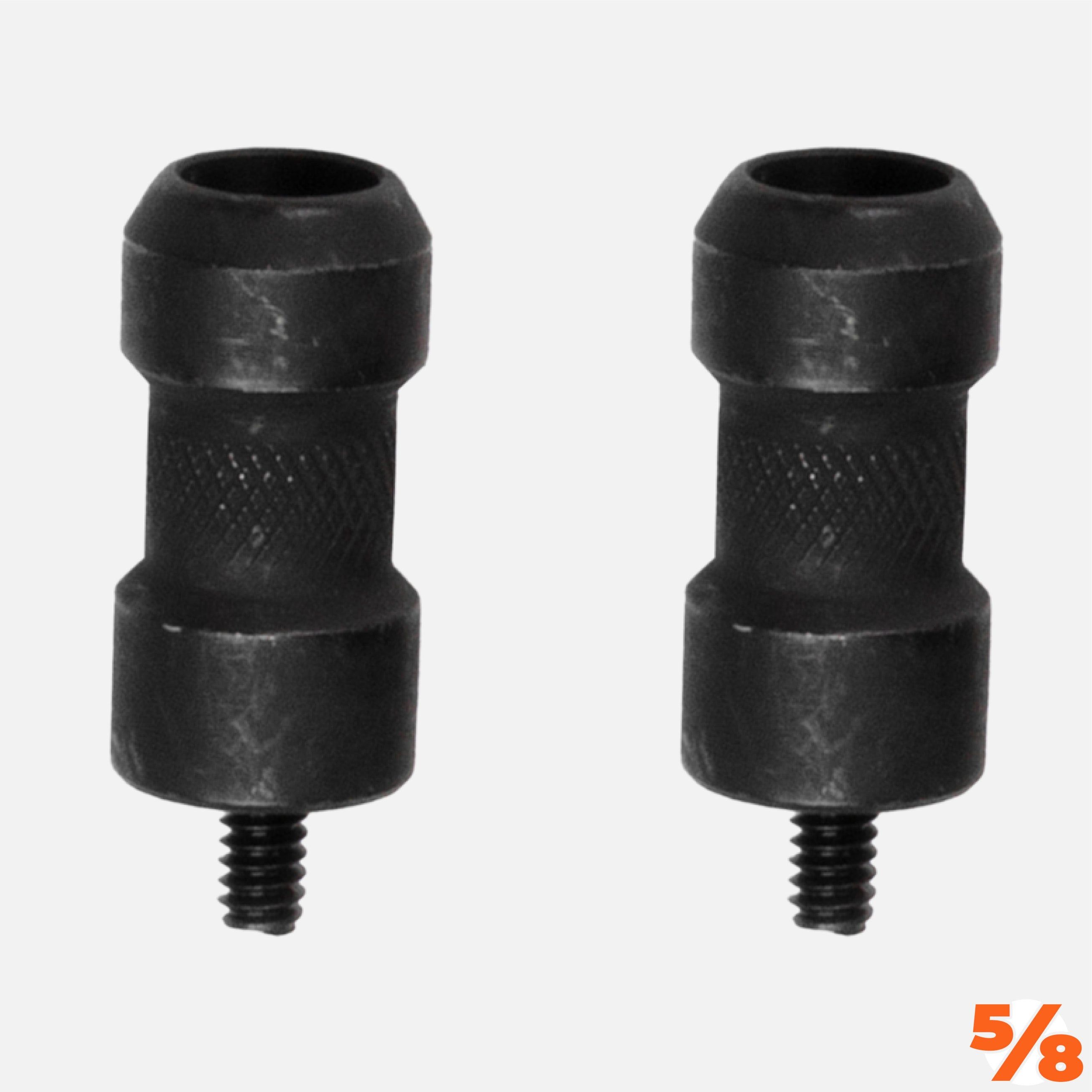

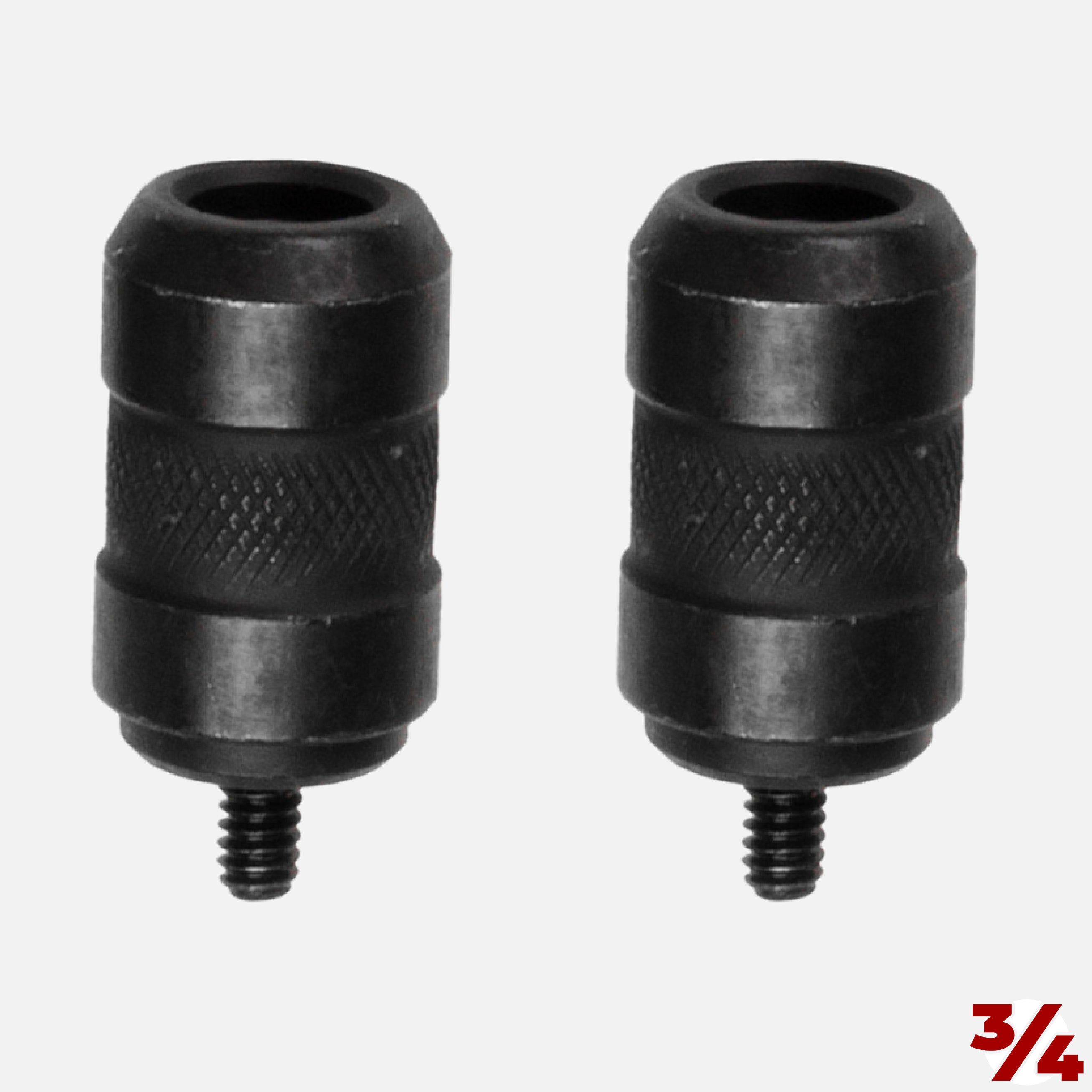

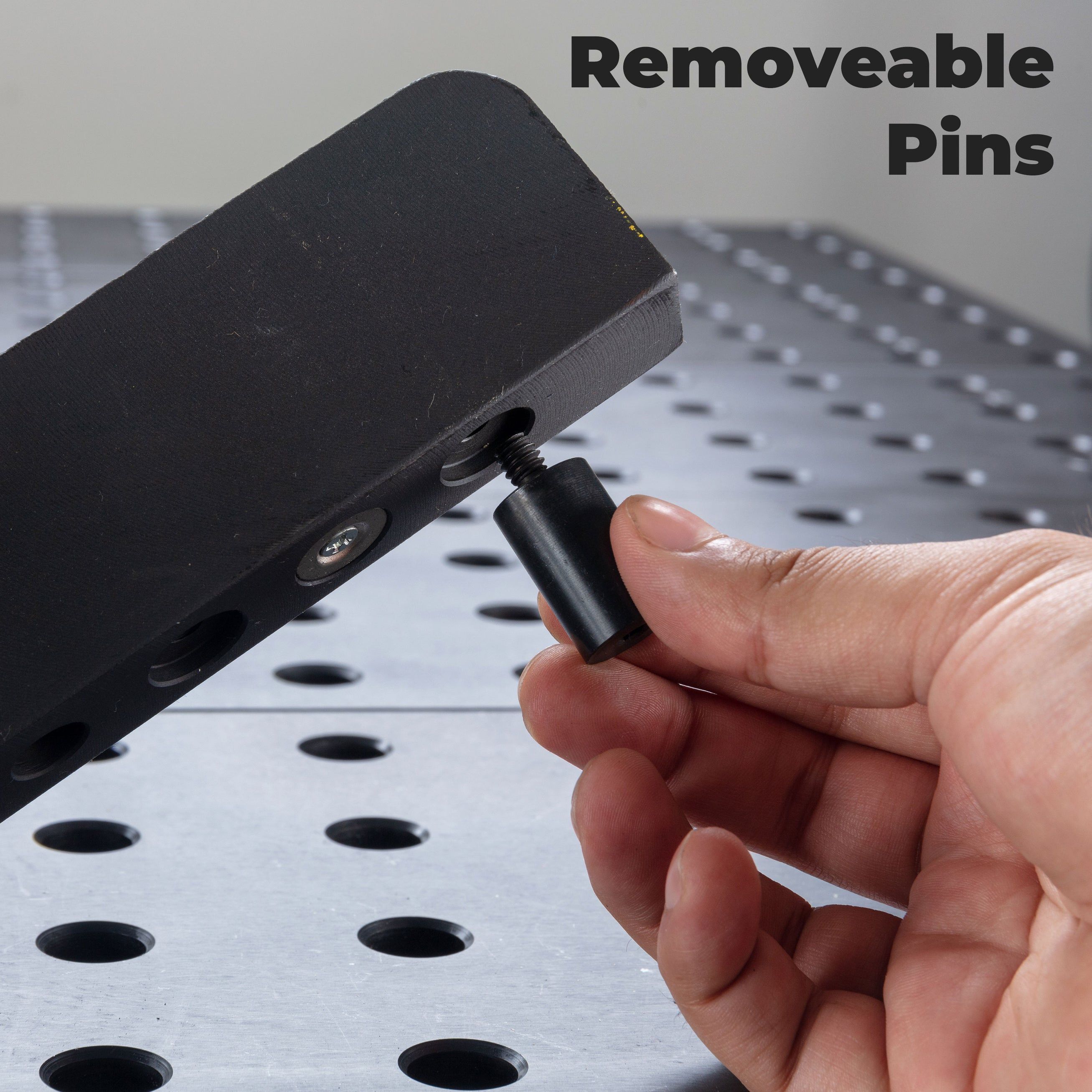

Tapped holes in feet for pin alignment on 2" grid tables
Foot Design

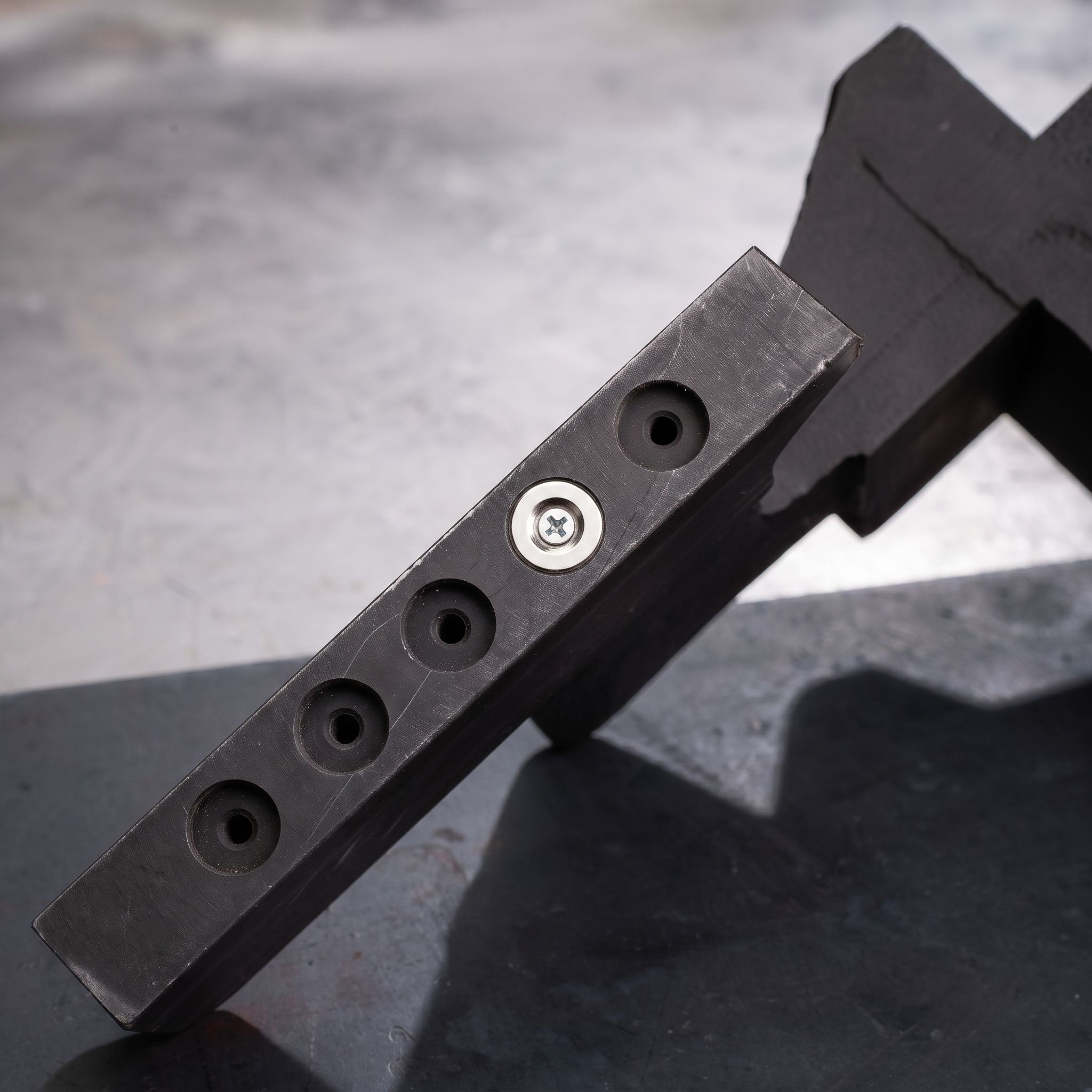

1" wide with magnets, balanced to resist tipping
Weight
20 lbs
Square Specifications
F5-TAS120-FE
Clamping Axis
3-Axis Clamping
Precision-machined Faces
4 on both inner and outer sides
Max Heights (Outside Face)
7"
Material
Dutile Cast Iron
Coating
Dragon Scale
Fixture Table Compatibility
Tapped holes in feet for pin alignment on 2" grid tables
Foot Design
1" wide with magnets, balanced to resist tipping
Weight
35 lbs
Fixture Table Compatible
What Is Dragon Scale Coating?
Superior Anti-Spatter Properties
Improved Corrosion Resistance
Enhanced Wear Resistance
Steel vs Dragon Scale Coating
Nitride vs Dragon Scale Coating
Full Video (Dragon Scale Demo)
